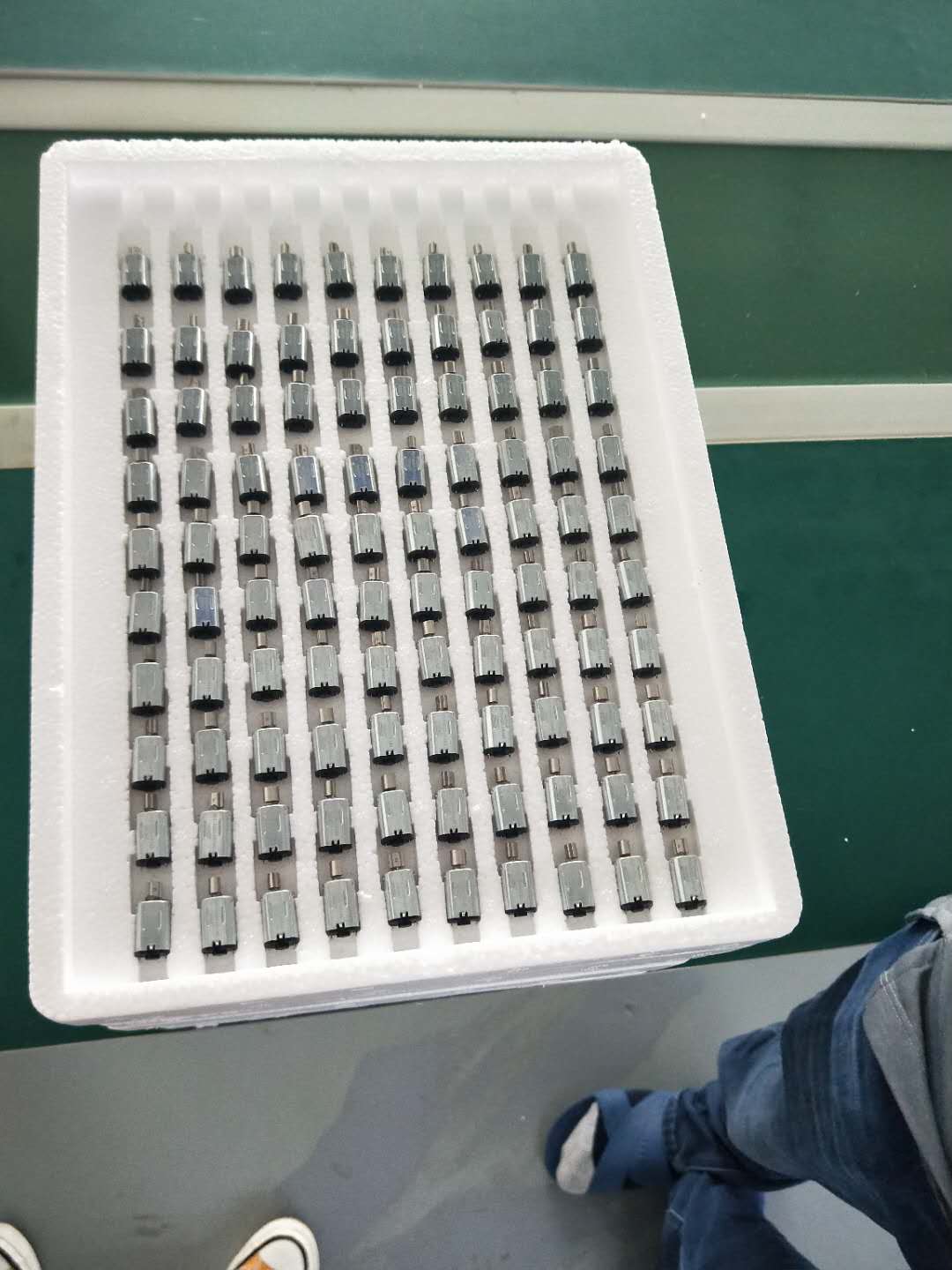

N20
Overview
The N20 series represents a class of ultra-compact, high-precision permanent magnet DC motors engineered explicitly for miniature precision instruments and compact mechanisms. Characterized by its standardized "N20" form factor, this motor delivers reliable, efficient rotational motion in an exceptionally small and lightweight package, making it an indispensable component in devices where space, weight, and controlled performance are paramount.
Key Features & Advantages
Ultra-Miniature Size & Lightweight: The N20 standard specifies a compact rectangular body (typically ~10mm x 12mm x 15mm) and very low weight (approx. 5-10 grams), enabling integration into the most space-constrained designs without compromising on available functionality.
Precision Engineering for Stable Performance: Manufactured with tight tolerances, it offers consistent startup voltage, stable no-load speed, and smooth operation, which is critical for the accurate functioning of sensors, optical systems, and fine adjustment mechanisms.
High Power Density: Despite its tiny size, it provides a favorable power-to-volume ratio, delivering sufficient torque for driving small gears, actuating levers, or spinning light loads in precision devices.
Low Electrical Noise & Smooth Rotation: The coreless or iron-core design with precious metal commutation minimizes electrical interference, ensuring compatibility with sensitive electronic circuits often found in analytical and measurement instruments.
Versatile Mounting & Configuration: Available with various output shaft types (plain, D-cut, pinion), gearbox options (spur or planetary), and terminal styles (solder tabs or lead wires), allowing for flexible mechanical and electrical integration.
Cost-Effective for Mass Production: Designed for high-volume manufacturing, it provides a reliable and economical motion solution for consumer electronics, medical disposables, and high-volume instrumentation.
Typical Specifications
Motor Type: Coreless or Iron-Core Permanent Magnet DC Motor (PMDC).
Body Dimensions: ~10mm (W) x 12mm (H) x 15mm (L) (excluding shaft).
Nominal Voltage: Common ratings: 3V, 6V, or 12V DC.
No-Load Speed: Typically between 5,000 to 15,000 RPM (at rated voltage).
No-Load Current: Very low, often < 60 mA.
Stall Torque: Ranges from 0.5 to 3.0 mN·m (approx. 5 to 30 g·cm).
Output Shaft: Diameter typically 2.0mm or 2.3mm, with various configurations.
Gearbox Options: Integrated reduction gearboxes available with a wide range of ratios (e.g., 1:10 to 1:1000+) for high-torque, low-speed output.
Primary Applications
The N20 motor is the ideal micro-drive solution for a vast array of precision devices:
Precision Instruments: Camera module focus/zoom drives, laser aperture controls, galvanometer drives, pointer mechanisms in gauges.
Medical & Lab Devices: Micro-pumps and valves, sample handling mechanisms, fluidic control in diagnostic cartridges, stirrers.
Office & Consumer Automation: Miniature fans, automatic retractable mechanisms, card readers, currency validators.
Model Making & Robotics: Actuators for small robotic joints, drone camera gimbals, miniature automation projects.
Telecommunications: Adjustable components in optical transceivers.
Why Choose the N20 Series Miniature DC Motor?
For designers of cutting-edge miniaturized equipment, the N20 motor provides the essential "muscle" in a microscopic footprint. It bridges the gap between the need for electromechanical motion and the severe spatial limitations of modern portable and embedded systems. Its standardized size, proven reliability, and availability in geared versions make it a go-to, off-the-shelf component for innovating in fields where every cubic millimeter counts.
Note: Performance is highly sensitive to operating voltage, load, and temperature. For continuous duty or high-torque applications, ensure proper thermal management. Always verify the motor's rated parameters match the application's requirements, and consider a geared version if lower speed and higher torque are needed.
| Products code | voltage | NO load | at maximum | stall | |||||||
| operating range | speed(RPM) | Current(A) | speed(RPM) | Current(A) | torque(gf.com) | output(w) | Eff(%) | torque(gf.com) | Current(A) | ||
| FF-N20VA-10190 | 3 | 12000 | 0.045 | 9550 | 0.155 | 1.85 | 0.18 | 60 | 9.4 | 0.55 | |
| FF-N20VA-13115 | 2.4 | 15500 | 0.095 | 12200 | 0.355 | 2.85 | 0.4 | 58 | 13 | 1.16 | |
| FF-N20VA-12115 | 9.6 | 45200 | 0.151 | 35810 | 0.62 | 8.2 | 2.95 | 56.4 | 40 | 2.5 | |
