How to Test a Motor Capacitor

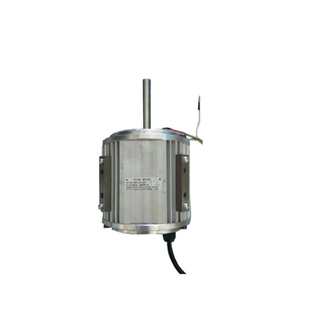

A capacitor motor is an electric motor that relies on a capacitor to function efficiently. Capacitors play a critical role in providing the necessary phase shift in AC motors, improving starting torque, running performance, and overall efficiency. Over time, motor capacitors can fail due to electrical wear, excessive heat, or prolonged use. Knowing how to test a motor capacitor can help identify faults early and avoid potential motor damage. This guide will walk you through the steps of testing and replacing motor capacitors, including the necessary safety measures.
Steps
Discharging the Capacitor
Before you begin testing a motor capacitor, it's crucial to discharge it properly. Capacitors store electrical energy, and even when disconnected from the power source, they can still deliver a harmful shock if not handled carefully.
Turn off the power supply: Ensure the motor is completely disconnected from any power sources to avoid electrical accidents.
Use an insulated screwdriver: Place an insulated screwdriver across the capacitor's terminals to safely discharge any stored electricity. Alternatively, you can use a discharge tool designed for capacitors.
Wait for a few minutes: After discharging, give the capacitor a few minutes to ensure any residual charge has dissipated.
Using a Multimeter
A multimeter is the most commonly used tool to test whether a capacitor motor capacitor is functioning correctly. Here's how to test it:
Set the multimeter: Switch the multimeter to the capacitance testing mode (indicated by a symbol that looks like two parallel lines or a small “C”).
Connect the probes: Attach the multimeter's red and black probes to the capacitor's terminals. It doesn't matter which probe goes to which terminal since capacitors are non-polarized in motors.
Read the display: The multimeter will show a capacitance reading in microfarads (µF). Compare the reading with the capacitor’s rated capacitance, typically written on its body. If the value is significantly lower or the multimeter displays "OL" (over-limit), the capacitor is faulty and should be replaced.
Steps to Remove the Capacitor from the Motor
Before testing the capacitor, you’ll need to remove it from the motor. Here are the steps:
Turn off the power: Always start by disconnecting the power supply to the motor to prevent accidental shock or injury.
Locate the capacitor: In most capacitor motors, the capacitor is housed within a protective case, often mounted externally on the motor body. It may be secured with screws or clips.
Remove the wires: Carefully disconnect the wires connected to the capacitor. Take note of how they were connected to ensure proper reconnection later.
Unscrew the capacitor: Use a screwdriver to remove any screws holding the capacitor in place. Gently remove the capacitor from its housing.
Testing Motor Capacitors
Testing a motor capacitor ensures that it is operating within the manufacturer's specifications. There are two main ways to test a motor capacitor: with a multimeter or a capacitor tester.
Testing with a Multimeter
As described earlier, testing a capacitor with a multimeter is straightforward. After discharging the capacitor and setting the multimeter to the correct mode, connect the probes to the capacitor terminals and note the capacitance reading. Compare it to the rated value indicated on the capacitor's label.
Testing with a Capacitor Tester
A dedicated capacitor tester is another tool you can use for more accurate testing. It works similarly to a multimeter but provides more specific information about the health of the capacitor, including leakage resistance and loss factor, in addition to capacitance. If the reading is significantly different from the rated value, the capacitor is likely defective.
Replacing Motor Capacitors
If the capacitor is faulty, replacing it is necessary to ensure the proper operation of your capacitor motor. Here’s how to replace a motor capacitor:
Choose the correct replacement: Capacitors come in different ratings, measured in microfarads (µF). Make sure the replacement capacitor has the same rating as the one you are replacing. Using the wrong type can cause motor failure or inefficiency.
Reconnect the wires: After securing the new capacitor in place, reconnect the wires exactly as they were connected to the old one. Double-check the connections to avoid any wiring errors.
Test the motor: Once the capacitor is installed, test the motor by turning it on to see if it starts and runs properly. A properly functioning capacitor will enable smooth motor operation.
Safety Warning
Working with capacitors can be dangerous due to their ability to store electrical energy. Always take the following safety precautions when handling capacitors in a capacitor motor:
Ensure power is disconnected: Always double-check that the motor is completely disconnected from the power source before beginning any work.
Wear protective gear: Use insulated gloves and tools to avoid electrical shock.
Discharge the capacitor: Capacitors can store a dangerous amount of energy even after the power is turned off. Always discharge the capacitor using a resistor or an insulated tool before handling it.
Handle with care: Capacitors can sometimes leak or swell, indicating they are damaged. Avoid handling them directly if you notice any bulging or leakage, as this may lead to hazardous exposure to chemicals.
FAQ
1. What does a motor capacitor do?
A motor capacitor is used in capacitor motors to provide starting torque and improve running performance by creating a phase shift in the AC power supply. It helps the motor to start more smoothly and run efficiently.
2. How do I know if my capacitor is bad?
Common signs of a bad capacitor include difficulty starting the motor, inconsistent motor performance, and audible humming or clicking sounds. If the motor capacitor is visibly swollen or leaking, it’s likely defective and needs to be replaced.
3. Can I test a capacitor without removing it?
Technically, you can test a capacitor while it’s still connected to the motor, but it's not recommended because other components in the circuit may interfere with the readings. It’s best to remove the capacitor from the circuit before testing it.
4. What happens if I use the wrong capacitor?
Using a capacitor with an incorrect rating (either too high or too low in microfarads) can result in inefficient motor performance, difficulty starting, or even permanent motor damage. Always use a capacitor with the exact rating specified for your motor.
5. How often should motor capacitors be replaced?
Motor capacitors don’t have a fixed lifespan, but they tend to fail after several years of use, especially in hot or harsh environments. If you notice signs of wear, such as bulging, leaking, or decreased motor performance, it may be time to replace the capacitor.
6. Can I repair a faulty capacitor?
Capacitors cannot be repaired. If a motor capacitor is faulty, it should be replaced with a new one of the correct rating. Repairing a faulty capacitor is both impractical and unsafe.
7. Are all motor capacitors the same?
No, motor capacitors come in various sizes and ratings. Start capacitors are typically larger and provide a higher capacitance value for short periods, while run capacitors are smaller and designed for continuous use. It’s important to match the correct capacitor type to your motor.
In conclusion, testing and replacing motor capacitors is a crucial maintenance task that ensures the smooth operation of a capacitor motor. By using a multimeter or capacitor tester, you can quickly diagnose capacitor problems and take appropriate action. Always prioritize safety by following the necessary precautions when handling capacitors. Whether you're an experienced technician or a DIY enthusiast, understanding how to maintain your motor capacitors can extend the life of your motor and prevent costly repairs.
