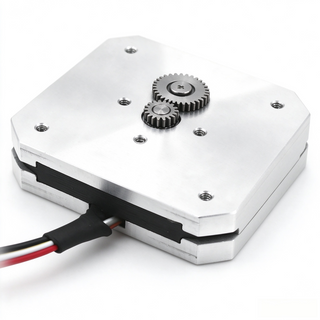

A stepping motor, commonly known as a stepper motor, is an electromechanical device that converts electrical pulses into precise mechanical movements. Stepper motors are unique due to their ability to divide a full rotation into a series of equal steps, allowing for highly accurate control of position and speed. This article will explore the basics of stepper motors, their uses, working principles, and answers to common questions about their operation and longevity.
There are three main types of stepper motors:
Permanent Magnet (PM) Stepper Motor: In a PM stepper motor, a permanent magnet is used in the rotor. These motors are known for their simplicity, reliability, and affordability. They typically offer medium precision and are ideal for applications where cost is a primary consideration.
Variable Reluctance (VR) Stepper Motor: VR stepper motors have a rotor made of soft iron with multiple teeth, which aligns with the magnetic field produced by the stator windings. These motors offer higher precision but tend to be less commonly used compared to PM and hybrid motors.
Hybrid Stepper Motor: A hybrid stepper motor combines the features of both PM and VR stepper motors, offering high torque, speed, and accuracy. Hybrid motors are the most commonly used type of stepper motor due to their precision and reliability, making them ideal for demanding applications.
The stepping motor operates by receiving electrical pulses from a driver circuit. Each pulse moves the rotor by one step, which is a fraction of a full rotation. The number of steps per revolution depends on the motor's design—common values are 200 steps per revolution, resulting in 1.8° per step, but some motors can achieve higher or lower resolutions.
The stepping motor follows a discrete movement pattern, unlike traditional continuous motors. This allows for precise control over speed and position, making stepper motors a favorite in industries like robotics, automation, 3D printing, and CNC machining.
Stepper motors are widely used in applications where precise position control is critical. Common uses include:
3D printers: For accurate movement of print heads and material platforms.
CNC machines: For controlling tool positioning with high precision.
Robotic arms: In industrial robots for repetitive, accurate movements.
Medical devices: Such as infusion pumps, where exact dosage delivery is essential.
While a stepping motor can be used in applications requiring rotation, it is not ideal as a substitute for a traditional continuous motor (such as an AC or DC motor) in all scenarios. Stepper motors are designed for precise position control rather than constant high-speed rotation. They are slower than traditional motors and can generate significant heat when run continuously at high speeds.
That said, if your application demands precise positioning and lower speeds, such as a camera panning system or a turntable, a stepper motor may work well. For high-speed applications with minimal position control requirements, a traditional AC or DC motor would be a better fit.
There are several ways to identify whether a motor is a stepper motor:
Stepped Movement: If you manually rotate the motor's shaft, you will feel discrete steps. This is a clear indicator of a stepper motor's operation.
Multiple Wires: Most PM stepper motors or hybrid stepper motors have more than two wires, usually 4, 6, or 8 wires depending on whether they are bipolar or unipolar stepper motors.
No Commutator: Unlike brushed DC motors, stepping motors lack a commutator. They rely on external electronics (the driver) to control the current to the stator windings and rotate the rotor in steps.
Controlled by Pulses: Stepper motors do not require a continuous voltage to operate. Instead, they are controlled by pulses that move the rotor by small steps.
Stepper motors are widely used because of their precision, reliability, and control. The ability to move in discrete steps allows for accurate positioning without the need for feedback systems, such as encoders or tachometers, which are typically required in other motor types.
Other reasons for their widespread use include:
Open-loop control: Since the motor moves in discrete steps, it can achieve precise positioning without the need for a feedback system. This simplifies the overall design and reduces costs.
Repeatability: Stepper motors offer excellent repeatability, making them ideal for applications requiring consistent performance across repeated cycles.
Torque at low speeds: Stepper motors provide high torque at low speeds, which is valuable for applications such as conveyor belts and CNC machinery.
Hybrid stepper motors are particularly favored in industries that require both precision and power, combining the best features of PM and VR stepper motors.
Stepper motors are known for their durability and long lifespan. Under proper conditions, a stepping motor can last anywhere from 10,000 to 20,000 hours or more. Several factors influence the lifespan, including:
Operating environment: Dust, humidity, and extreme temperatures can shorten a motor’s lifespan.
Usage patterns: Continuous operation at high speeds or torque can lead to faster wear.
Maintenance: Regular cleaning and proper lubrication can help extend the motor's life.
Unlike brushed motors, stepper motors have no physical contacts between the rotor and stator, which means fewer parts are prone to wear out, further enhancing longevity.
Yes, a stepping motor can run continuously, but there are some caveats. Stepper motors are not designed for high-speed, continuous rotation like traditional AC or DC motors. They perform best in applications requiring precise position control and moderate speed.
Running a stepper motor continuously at high speed may lead to overheating and reduced efficiency. Moreover, stepper motors tend to have lower torque at higher speeds, so their performance may degrade if used in such conditions. For continuous operation at high speeds, you might want to consider other motor types, such as servo motors or traditional induction motors.
A bad step motor can manifest several symptoms:
Skipped steps: If the motor loses steps or fails to rotate as expected, it could indicate an issue with the driver, wiring, or the motor itself.
Excessive heat: Stepper motors generate heat during operation, but excessive heat can indicate a problem such as overloading, inadequate ventilation, or electrical issues.
Unusual noise: Clicking, grinding, or buzzing noises that weren’t present during normal operation could suggest mechanical or electrical problems.
Vibration: While stepper motors naturally produce some vibration due to their discrete movement, excessive vibration may signal mechanical misalignment or electrical interference.
Lack of torque: If your PM stepper motor or hybrid stepper motor is suddenly delivering less torque, it might indicate worn-out components or electrical issues in the driver circuit.
If any of these symptoms occur, it’s essential to troubleshoot the motor and its related systems to determine the root cause. This could involve inspecting wiring connections, checking for overheating, or testing the driver electronics.
A stepper motor moves in discrete steps, allowing for precise control over position and speed. In contrast, a regular motor, such as a DC or AC motor, rotates continuously and is generally used for high-speed applications.
Stepper motors can run at moderate speeds, but their torque decreases as speed increases. For high-speed applications, other types of motors may be more suitable.
A hybrid stepper motor combines the characteristics of both PM and VR stepper motors. It offers high torque and precision, making it ideal for applications requiring both power and accuracy.
Stepper motors can overheat due to high current draw, poor ventilation, or continuous high-speed operation. Proper cooling and ensuring the motor is not overloaded can help prevent overheating.
The speed of a stepping motor is controlled by adjusting the frequency of the input pulses. A higher pulse frequency increases the speed, while a lower frequency decreases it.
In conclusion, stepping motors are a versatile and reliable option for applications requiring precise control over movement and speed. With their ability to move in discrete steps, they are ideal for industries such as automation, robotics, and 3D printing. While they may not be suited for all high-speed applications, PM stepper motors and hybrid stepper motors offer a unique combination of precision, power, and reliability that make them essential in many modern technological solutions.
