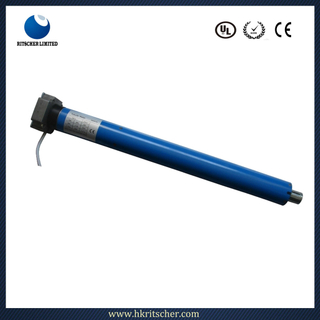

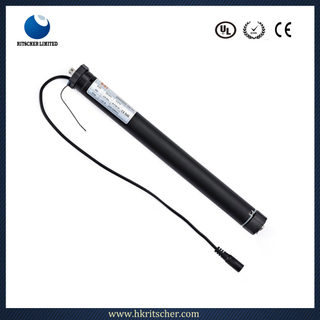

| Tubular Motor |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Product Features |
|
|
|
|
|
|
|
|
|
|
| Exquisite blue apprearance,easy installation |
|
|
|
|
|
|
|
| Smooth running, DB level is low |
|
|
|
|
|
|
|
|
| Smtandard electric limit switch with salient on the limit head. |
|
|
|
|
|
|
| With built-in receiver, wireless control |
|
|
|
|
|
|
|
|
| Usage: Roller blinds, venetian blinds, Honeycomb Blinds, Pleated Blinds |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model | Torque(N.m) | Rotating(RPM) | Rated Voltage(v) | Rated Frequency(Hz) | Rated power(w) | Rated Current(A) | Limit Tums(tum) | Protection Index(IP) | Running Time(min) | Net Weight(kg) |
| 230V/50Hz | SF35-3R | 3 | 28 | 230 | 50 | 139 | 0.61 | 42 | IP44 | >4 | 1.7 |
| SF35-6R | 6 | 17 | 230 | 50 | 155 | 0.68 | 42 | IP44 | >4 | 1.7 |
| SF35-10R | 10 | 17 | 230 | 50 | 161 | 0.71 | 42 | IP44 | >4 | 1.7 |
| SF35-12R | 12 | 17 | 230 | 50 | 170 | 0.75 | 42 | IP44 | >4 | 1.7 |
| 110V/60Hz | SF35-3R | 3 | 33 | 110 | 60 | 141 | 1.29 | 42 | IP44 | >4 | 1.7 |
| SF35-6R | 6 | 20 | 110 | 60 | 154 | 1.41 | 42 | IP44 | >4 | 1.7 |
| SF35-10R | 10 | 20 | 110 | 60 | 162 | 1.48 | 42 | IP44 | >4 | 1.7 |
| SF35-12R | 12 | 20 | 110 | 60 | 173 | 1.58 | 42 | IP44 | >4 | 1.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model | Torque(N.m) | Rotating(RPM) | Rated Voltage(v) | Rated Frequency(Hz) | Rated power(w) | Rated Current(A) | Limit Tums(tum) | Protection Index(IP) | Running Time(min) | Net Weight(kg) |
| 230V/50Hz | SF45-10R | 10 | 15 | 230 | 50 | 162 | 0.71 | 22 | IP44 | >4 | 2.3 |
| SF45-20R | 20 | 15 | 230 | 50 | 178 | 0.78 | 22 | IP44 | >4 | 2.5 |
| SF45-30R | 30 | 15 | 230 | 50 | 253 | 1.03 | 22 | IP44 | >4 | 3 |
| SF45-40R | 40 | 12 | 230 | 50 | 275 | 1.2 | 22 | IP44 | >4 | 3.2 |
| SF45-50R | 50 | 12 | 230 | 50 | 282 | 1.23 | 22 | IP44 | >4 | 3.4 |
| 230V/50Hz | SF45-10R | 10 | 18 | 100 | 50 | 166 | 1.51 | 22 | IP44 | >4 | 2.3 |
| SF45-20R | 20 | 18 | 100 | 50 | 179 | 1.62 | 22 | IP44 | >4 | 2.5 |
| SF45-30R | 30 | 18 | 100 | 50 | 244 | 2.23 | 22 | IP44 | >4 | 3 |
| SF45-40R | 40 | 14 | 100 | 50 | 280 | 2.55 | 22 | IP44 | >4 | 3.2 |
| SF45-50R | 50 | 14 | 230 | 50 | 296 | 2.45 | 22 | IP44 | >4 | 3.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
