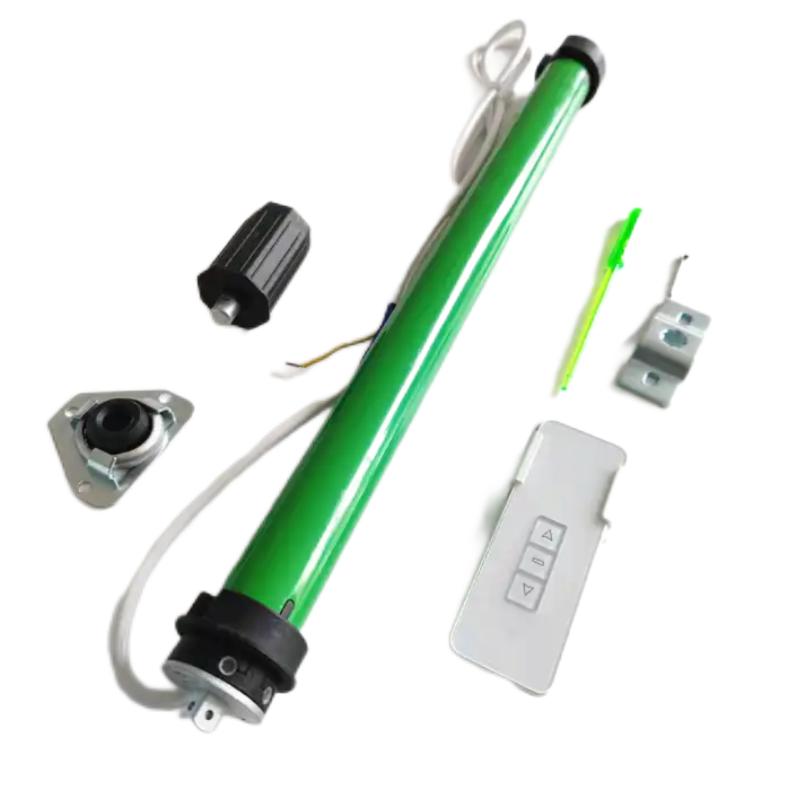

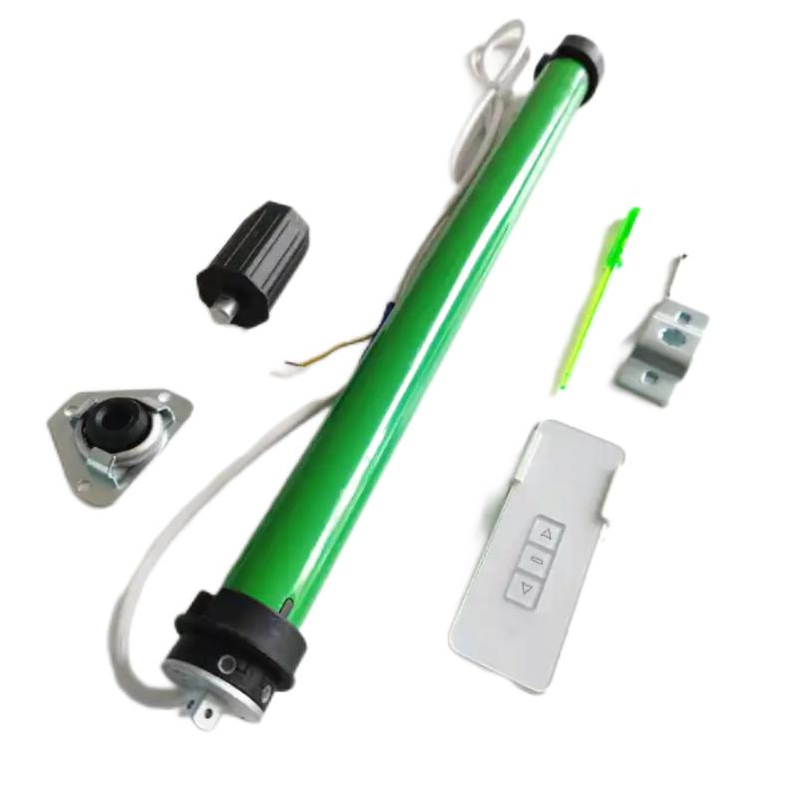

Tubular Motor 35mm with In-built Receiver for Roller Shutters/Blinds/Electric Curtains
Home » Products » Tubular Motor » Tubular Motor 35mm with In-built Receiver for Roller Shutters/Blinds/Electric Curtains

loading

Share to:
sharethis sharing button

Tubular Motor 35mm with In-built Receiver for Roller Shutters/Blinds/Electric Curtains

Electronic limit switch
Built-in receiver, Frequency 433.92MHz
Dot-move&light-adjust function
3rd intermediate limit position
Optional silent operation at 42dB
Availability:
Quantity:
Inquire Add to Basket

  • 35E

  • Ritscher

Built-In Receiver for Hassle-Free Integration

Equipped with an in-built radio frequency receiver and thus, no need for an external control unit. The tube motor will look very neat and nice after installing it because there will be no clutter from external control units. The motor will seamlessly integrate with your existing smart home systems, either remote controls or wall switches, giving you all the control you need effortlessly at your fingertips.


Compact and Space-Saving Design

Consume Less Power While Working So quietly, that even if it's at the house of a light sleeper, the person will never be woken by noises from outside. Have you been running roller shutters that make a screeching noise when closing or opening them? Either way, these noises won't come back to haunt you once you've installed these motors.

The new motor technology of ours runs almost silently. Lower your blinds in the morning to let some natural light into the room or close your shutters to have complete privacy around your property—the motor works quietly, so improves your well-being and keeps you, and any occupants, in your property tranquil.

Energy efficiency at its optimum, it is environmentally friendly. With the highest grade of materials and robust engineering, it provides long-lasting durability under the most demanding working conditions.

The tubular motor we make is designed in a facility that brings out the best in it for conserving energy, and thus, is a product you can use without any fears concerning the environment. When not in use, it also goes into a sleep mode all by itself; unnecessary energy wastage is thus thoroughly eliminated, enhancing your ability to save on electricity bills.

Its compatibility with a vast spectrum of roller shutters, blinds, and curtains makes it possible to be applied in a completely different level of demand beginning from home use up to commercial application. It can work with both AC and DC, which gives flexibility for the different installation requirements.


The installation of such systems is so simple, and it requires little maintenance. You can check out a manual online or hire someone to service it for you. Whichever option you go for will take merely no time at all.

Motors are designed to install quickly and easily, reducing time and cost. Low maintenance provides good performance and does not require much effort and time in the long run.


Applications:

  • Residential Homes: Automate your roller shutters, blinds, or curtains for added convenience, comfort, and energy efficiency.

  • Commercial Spaces: Enhance the functionality and aesthetics of offices, hotels, and retail stores with smart shading solutions.

  • Industrial Facilities: Secure and control large shutters with ease, ensuring optimal performance in demanding environments.


 Model Torque(N.m) Rotating(RPM) Rated Voltage(v) Rated Frequency(Hz) Rated power(w) Rated Current(A) Limit Tums(tum) Protection Index(IP) Running Time(min) Net Weight(kg)
230V/50Hz SF35-3R 3 28 230 50 139 0.61 42 IP44 >4 1.7
SF35-6R 6 17 230 50 155 0.68 42 IP44 >4 1.7
SF35-10R 10 17 230 50 161 0.71 42 IP44 >4 1.7
SF35-12R 12 17 230 50 170 0.75 42 IP44 >4 1.7
110V/60Hz SF35-3R 3 33 110 60 141 1.29 42 IP44 >4 1.7
SF35-6R 6 20 110 60 154 1.41 42 IP44 >4 1.7
SF35-10R 10 20 110 60 162 1.48 42 IP44 >4 1.7
SF35-12R 12 20 110 60 173 1.58 42 IP44 >4 1.7













Model Torque(N.m) Rotating(RPM) Rated Voltage(v) Rated Frequency(Hz) Rated power(w) Rated Current(A) Limit Tums(tum) Protection Index(IP) Running Time(min) Net Weight(kg)
230V/50Hz SF45-10R 10 15 230 50 162 0.71 22 IP44 >4 2.3
SF45-20R 20 15 230 50 178 0.78 22 IP44 >4 2.5
SF45-30R 30 15 230 50 253 1.03 22 IP44 >4 3
SF45-40R 40 12 230 50 275 1.2 22 IP44 >4 3.2
SF45-50R 50 12 230 50 282 1.23 22 IP44 >4 3.4
230V/50Hz SF45-10R 10 18 110 60 166 1.51 22 IP44 >4 2.3
SF45-20R 20 18 110 60 179 1.62 22 IP44 >4 2.5
SF45-30R 30 18 110 60 244 2.23 22 IP44 >4 3
SF45-40R 40 14 110 60 280 2.55 22 IP44 >4 3.2
SF45-50R 50 14 110 60 296 2.45 22 IP44 >4 3.4


SF35-R















In-built Receiver for Convenient Control:

 Tubular Motor is equipped with an in-built receiver, allowing for easy integration with remote control systems. This feature eliminates the need for additional external receivers, streamlining installation and reducing system complexity. Whether you are controlling roller shutters, blinds, or electric curtains, this motor provides a simple yet effective way to automate and control your window treatments.


Electronic Limit Switch:

 The motor is equipped with an electronic limit switch that ensures precise control over the opening and closing positions of your blinds or shutters. This feature eliminates the need for mechanical switches, offering a more accurate and durable solution that helps extend the lifespan of the motor.


Compact and Low Noise Design:

With its small head and low-noise operation, the 35mm Tubular Motor is perfect for installations where space is limited or quiet operation is essential. It operates discreetly, ensuring that your living or working space remains peaceful while still providing efficient functionality. This makes it ideal for use in homes, offices, or any environment where noise reduction is important.


Optional Stator Size:

The motor offers optional stator sizes, allowing for customization based on the specific needs of your installation. This flexibility ensures that the motor can meet the performance requirements of different window coverings, from roller blinds to wooden Venetian blinds or Roman blinds.


Safe, Reliable, and Long-lasting:

Safety is paramount in every application, and our motor is designed to meet strict safety standards, ensuring reliable and consistent performance. Its long lifespan and durable construction make it a low-maintenance choice for your automation systems, minimizing downtime and repair needs.


Strong Power for Heavy-duty Applications:

Despite its compact size, the motor delivers strong power to efficiently operate even large and heavy shutters, blinds, and curtains. Whether you're looking to automate large windows, electric lifting doors, or other heavy-duty systems, this motor ensures powerful, reliable operation.


Wide Voltage Compatibility:

The motor is compatible with a range of voltages, including 110-130V and 220-240V, and operates across both 50Hz and 60Hz frequencies. This makes it adaptable to various international standards, ensuring ease of use no matter where you are located.


Tubular Motor is ideally suited for a wide range of automated systems, including:


Rolling Shutter Windows and Doors: Perfect for securely controlling shutters for homes and commercial buildings, providing enhanced security and convenience.

Automatic Doors: Seamlessly integrates into automatic door systems, offering smooth and efficient operation.

Awning Systems: Ideal for automating outdoor awnings, providing shade with ease at the touch of a button.

Electric Lifting Doors and Windows: Ideal for automated lifting systems in garages, warehouses, or residential settings.

Automatic Clothes Hangers: Adds convenience to your laundry space by effortlessly lifting and storing clothes.

Projection Screens: Perfect for controlling the movement of home theater projection screens, providing an automatic solution for cinema-style viewing experiences.
