SM100
RITSCHER

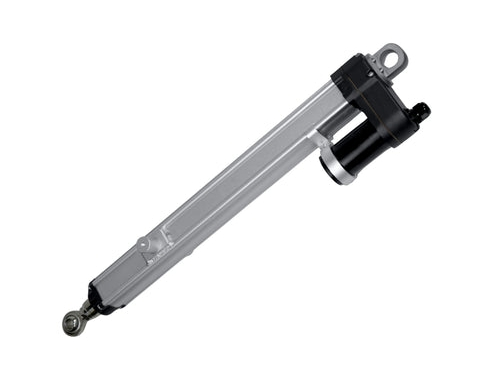

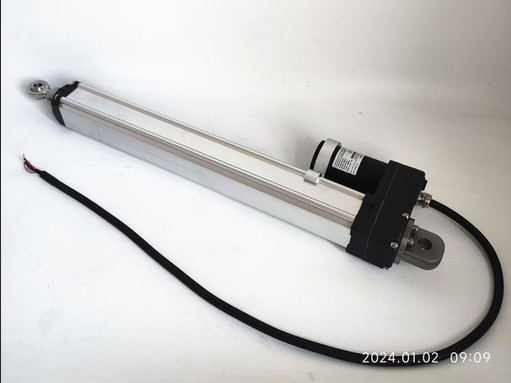

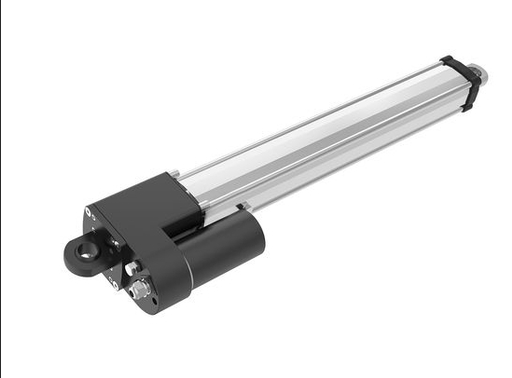

The SM100 heavy‑duty DC linear actuator is specially engineered for large‑scale solar PV tracking brackets. It offers a maximum dynamic load of 40000 N and static load up to 70000 N, delivering powerful push‑pull performance for heavy‑load solar tracking applications.
Operating at 24 VDC, the actuator runs at 1.4 mm/s no‑load speed and 1.2 mm/s full‑load speed with a 10% duty cycle. Boasting IP66 protection grade, it can withstand harsh outdoor environments, working stably within a wide temperature range of ‑40℃ ~ +65℃ against dust, rain and extreme temperature fluctuation.

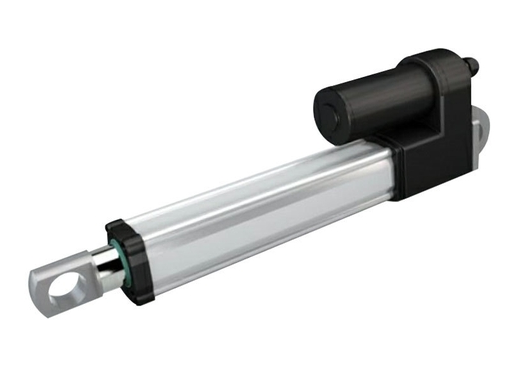

Fitted with clevis rod eyes on both ends, it compensates angular deflection during bracket swinging for easy field installation. Two load variants (Code A / Code B) are available for selection. A 12 V version is optional, please note the current will double under 12 V power supply.
This robust compact actuator is widely adopted for solar PV tracker systems, outdoor heavy‑duty lifting equipment, agricultural machinery and other industrial linear motion scenarios.
