SM500
RITSCHER

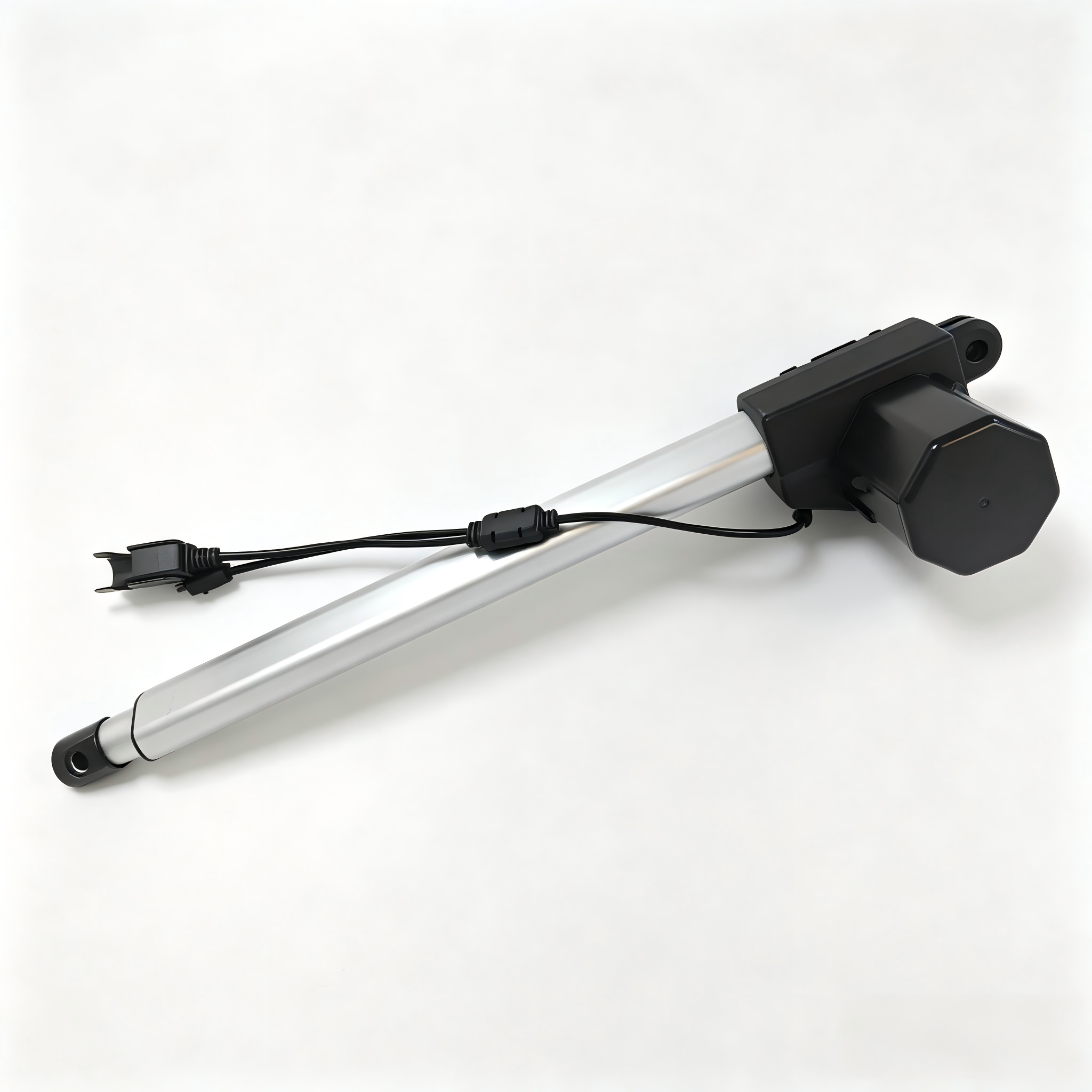

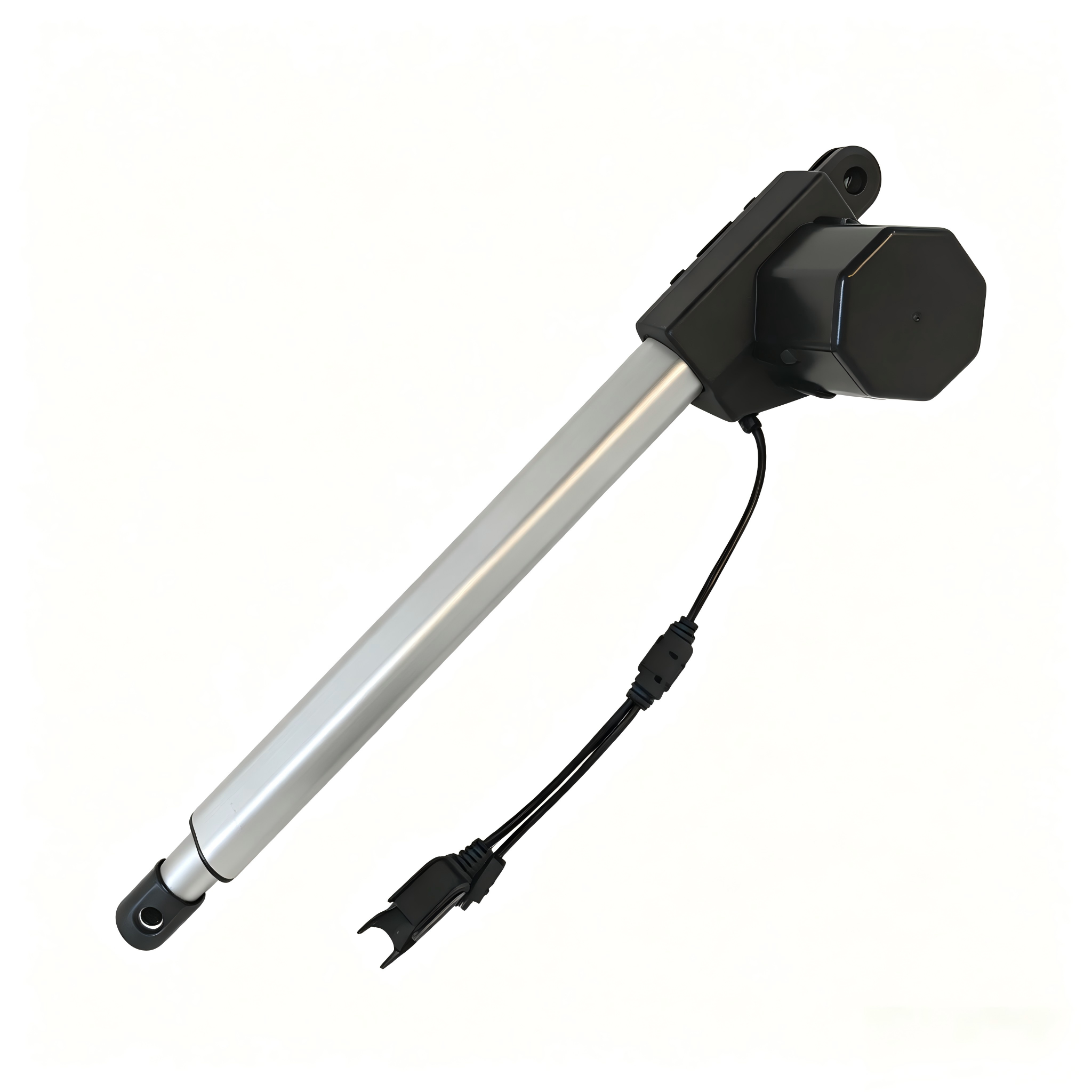

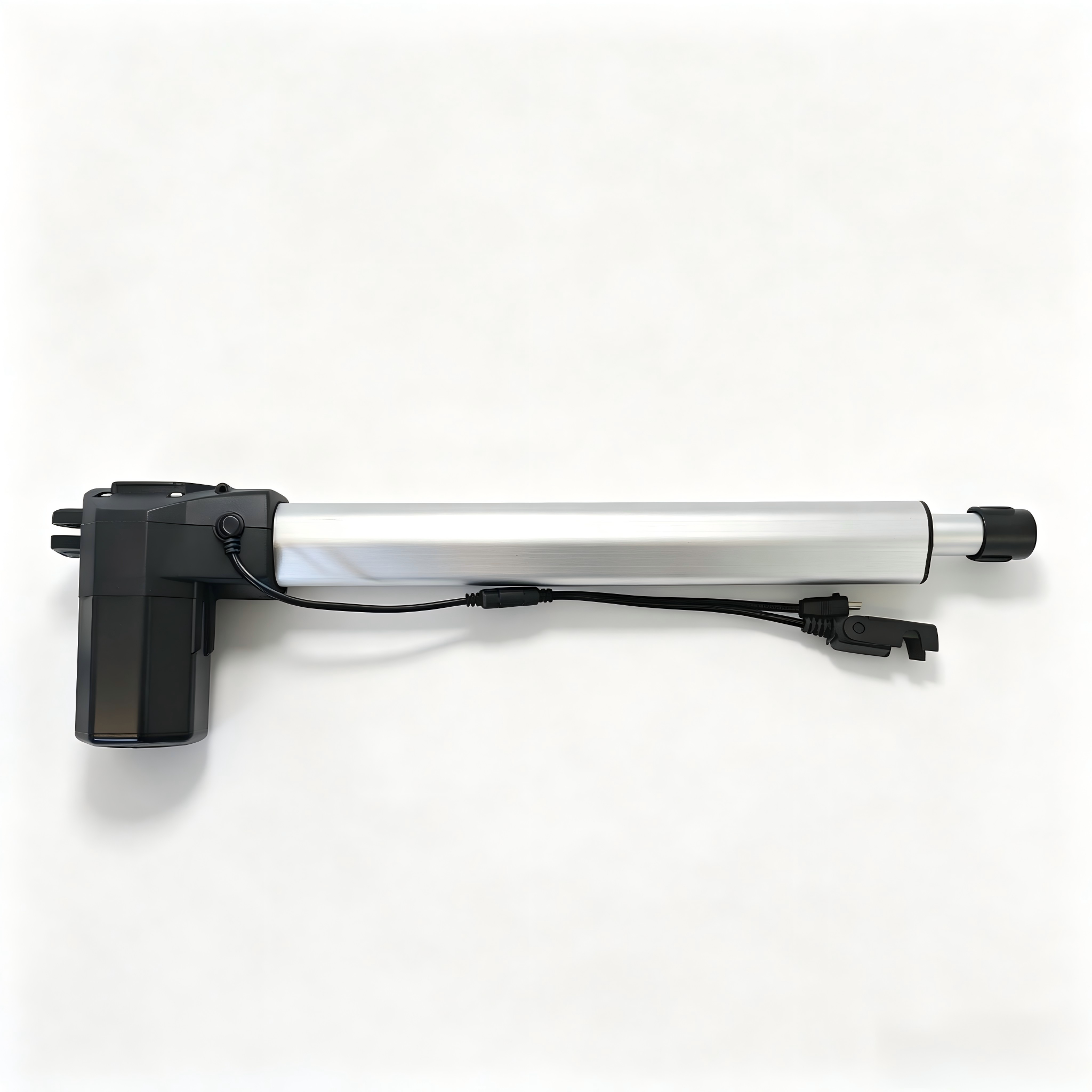

The SM500 is a heavy‑duty DC‑powered linear actuator developed for high‑force furniture and medical equipment applications, such as electric sofas, recliner chairs, adjustable beds and care beds. It combines high thrust capacity, smooth low‑noise operation and optional position feedback function, making it a reliable motion solution for home and healthcare automation.

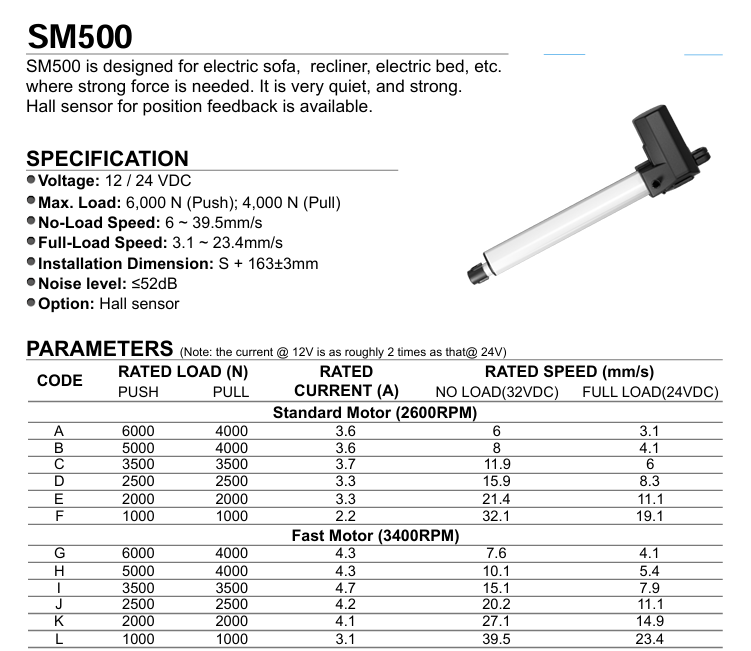

Electrical & Mechanical Performance
This linear actuator accepts 12 VDC or 24 VDC power input. It can deliver maximum push force up to 6000 N and maximum pull force up to 4000 N. Two motor variants are provided for selection: standard 2600 RPM motor and fast‑speed 3400 RPM motor. Multiple combinations of rated load and speed are available to match different project requirements.
No‑load speed ranges from 6.0 mm/s to 39.5 mm/s, while full‑load working speed varies between 3.1 mm/s and 23.4 mm/s. The noise level is controlled at ≤52 dB for comfortable user experience.
Important note: The operating current under 12 VDC is roughly twice the current under 24 VDC. Please select your power supply properly according to working voltage and actual load.
Position Feedback Option
Hall‑sensor position feedback is available as an optional configuration. With hall sensor fitted, the actuator can output real‑time position signal, which supports accurate positioning, synchronous multi‑actuator running and automated system control.
Installation & Structure
Compact mechanical structure with installation dimension of S + 163±3 mm. Standard end fittings with ø10.20 mounting holes simplify mechanical connection. The robust housing ensures stable long‑term performance under frequent cyclic working conditions.
Typical Applications
▪ Electric sofa / power recliner
▪ Adjustable electric bed
▪ Medical & nursing care bed
▪ Other home automation devices requiring push‑pull linear motion
Order Reminder
Please confirm required stroke (S), working voltage, load grade code and whether hall‑sensor feedback is needed when placing order. Different code options provide different load‑speed characteristics for your selection.
