SM600
RITSCHER

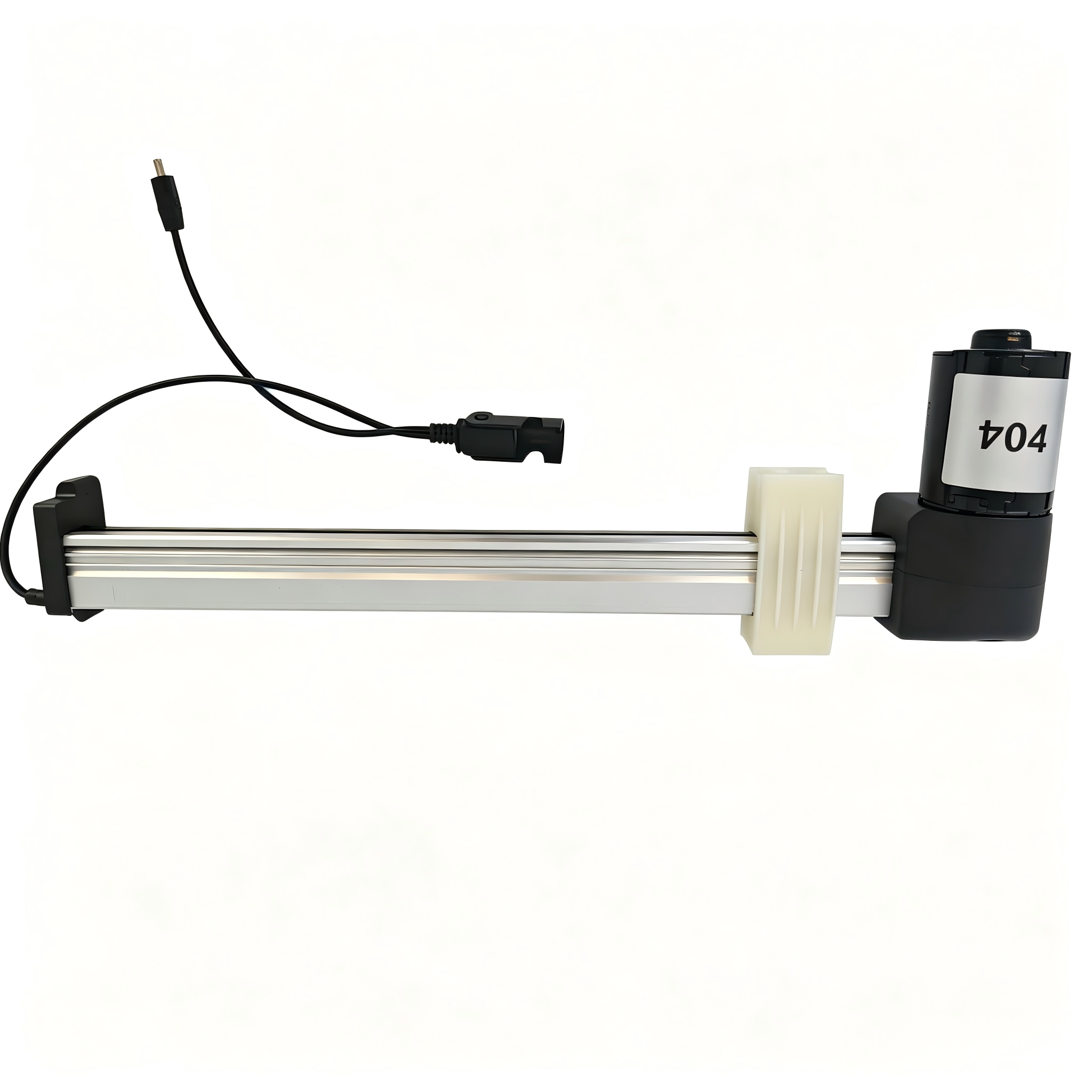

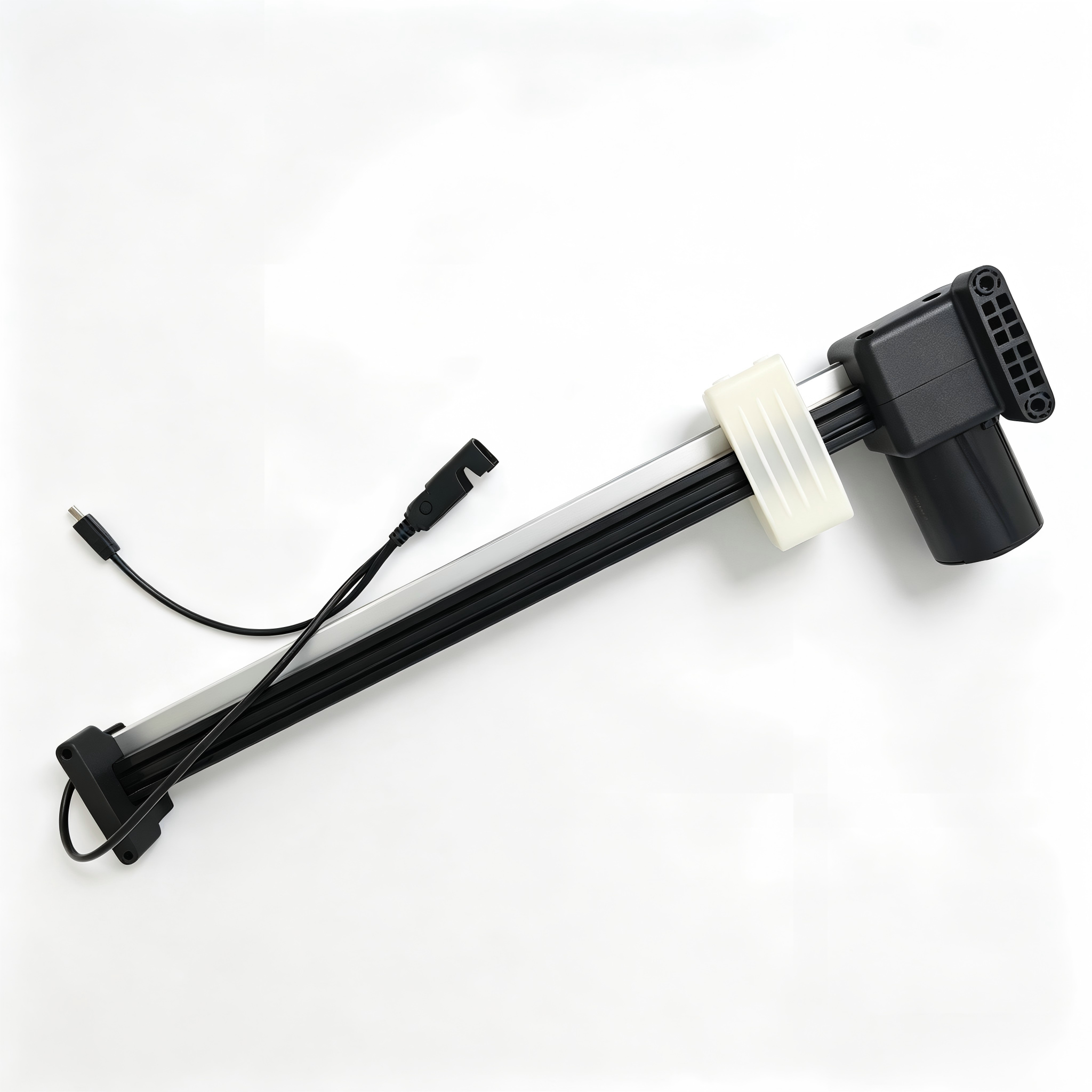

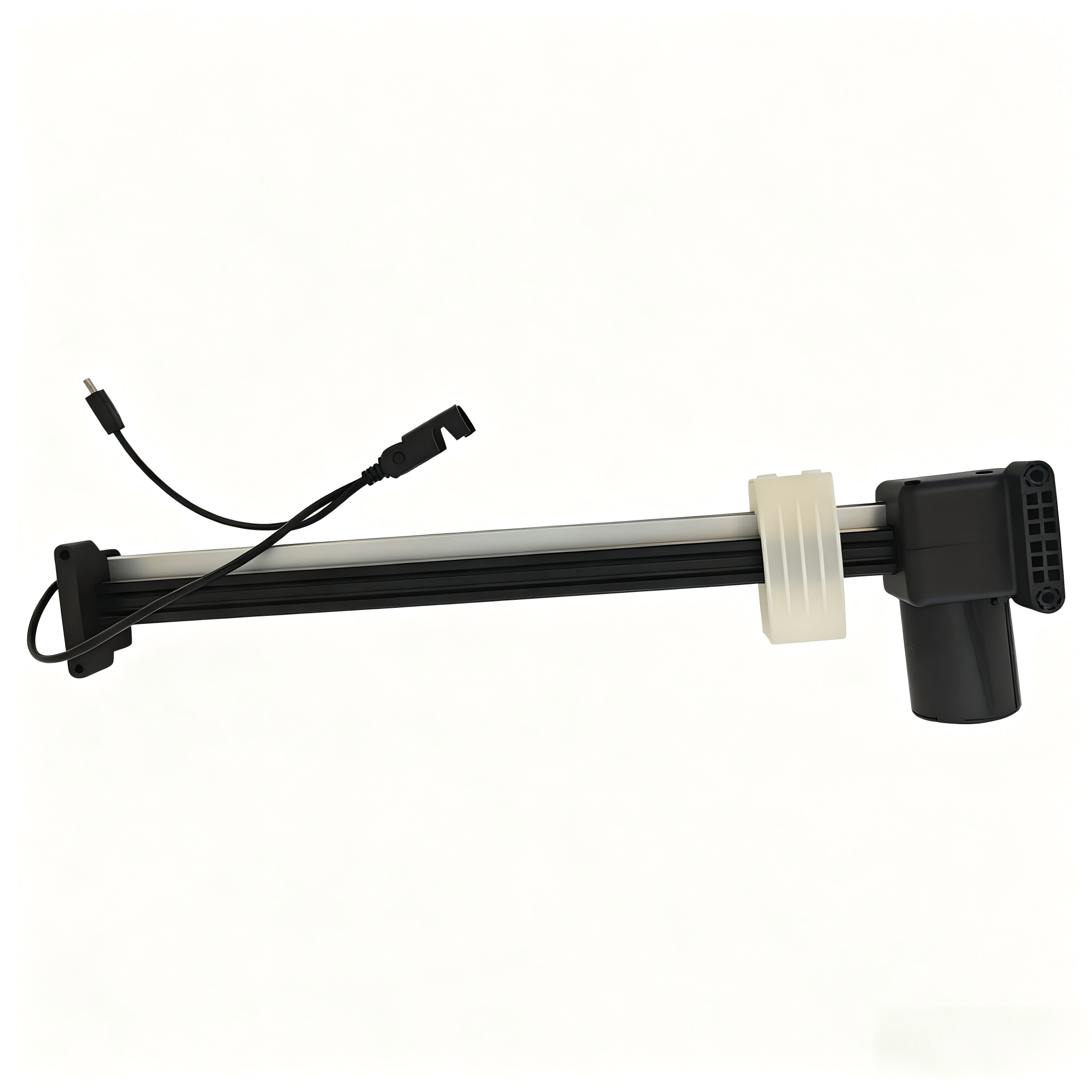

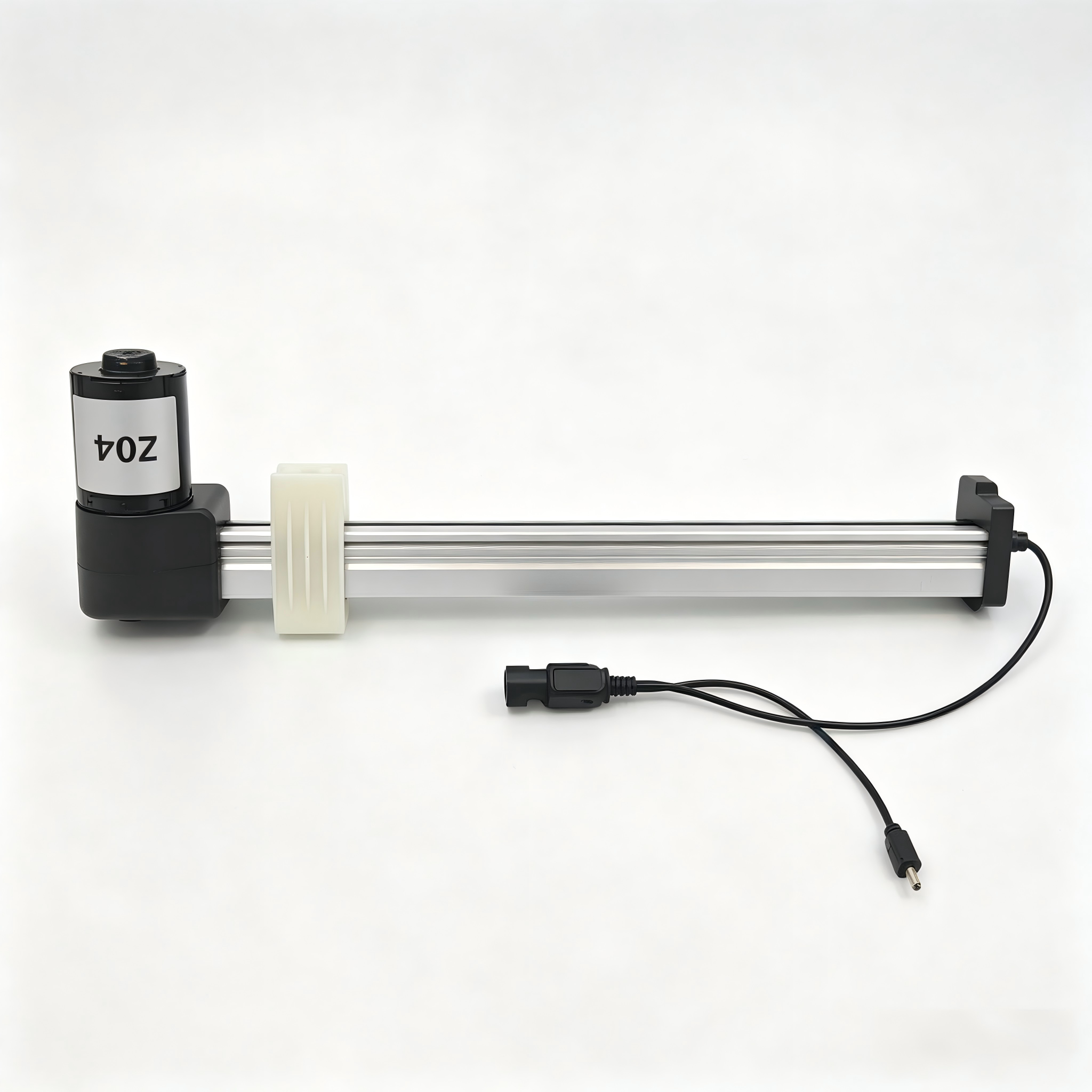

SM600 Slide‑Type DC Linear Actuator
SM600 is a slide‑structure electric linear actuator designed for home furniture and home‑care equipment. It is widely applied to massage chairs, elderly recliner chairs, electric beds and smart sofas.
Powered by 12/24 VDC, this linear actuator delivers up to 1000N push and pull force. Two motor versions are optional: standard 2600RPM motor and high‑speed 3400RPM motor to satisfy different speed requirements. The no‑load speed ranges from 33 mm/s to 58 mm/s, while full‑load speed is 20‑29 mm/s.
Featured with low‑noise performance ≤50dB, it ensures quiet and smooth operation. The compact slide‑type structure saves installation space and brings stable running performance. Multiple force and speed options are available, and customized specifications are supported for your projects.

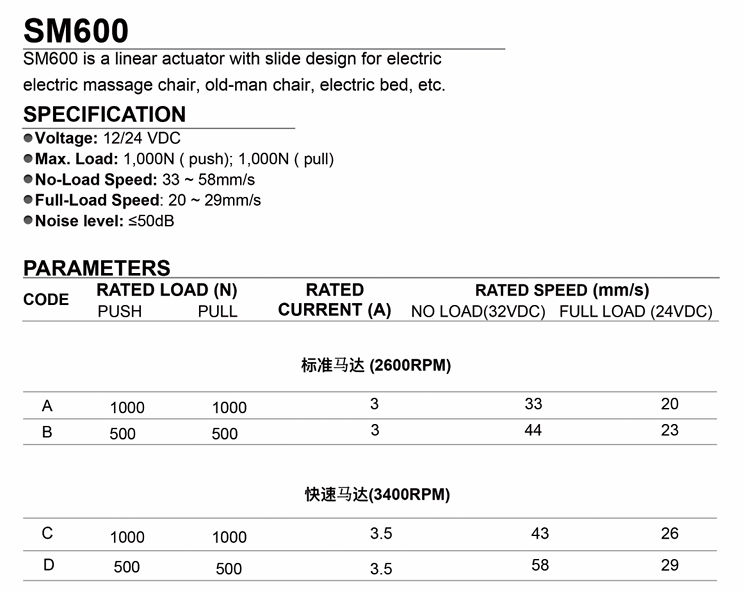

Input Voltage: 12/24 VDC
Max Push & Pull Load: 1000N
Two motor options: 2600RPM standard motor / 3400RPM high‑speed motor
Speed range: 33‑58mm/s (no‑load), 20‑29mm/s (full‑load)
Low noise level ≤50dB for quiet usage

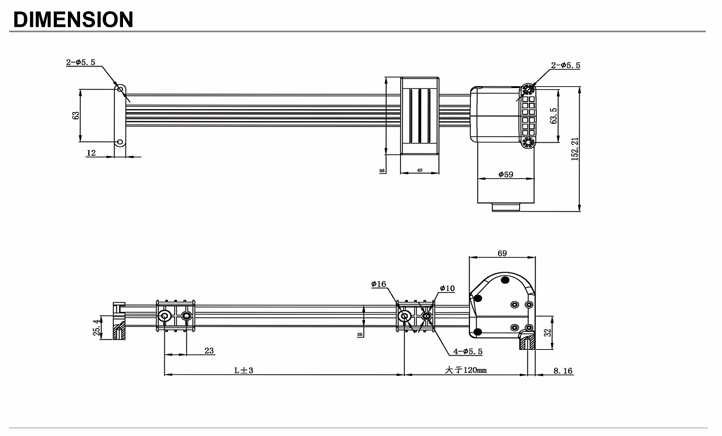

Space‑saving slide‑type mechanical structure
Reliable performance for massage chair, recliner, electric bed
Customizable stroke and parameters available
Massage chair, elderly recliner chair, electric bed, smart sofa, home‑care furniture.
SM600 slide‑type DC linear actuator with max 1000N push‑pull force, 12/24VDC power supply. Equipped with standard or high‑speed motor, low‑noise ≤50dB. Suitable for massage chairs, recliners and electric beds, custom specifications are acceptable.
