In the realm of electrical engineering, motors play a crucial role in various applications, from industrial machinery to household appliances. Among the various types of motors, DC (Direct Current) motors are widely used due to their simplicity and ease of control. However, DC motors can be categorized into two main types: Brushless DC Motors (BLDC) and Conventional Brushed DC Motors. This article aims to explore the differences between these two types of motors, focusing on their construction, working principles, advantages, disadvantages, and application considerations.
DC motors have been a cornerstone in the development of modern technology. They convert electrical energy into mechanical energy, making them indispensable in many industries. The core keyword of this article, Brushless DC motor, highlights a significant advancement in motor technology that offers several benefits over conventional brushed DC motors. This article will delve into the distinctions between these two types of motors, examining aspects such as lifetime, speed and acceleration, electrical and acoustic noise, and cost.
Conventional brushed DC motors, also known as Brushed DC Motors, have been in use for over a century. They are characterized by their simple construction and straightforward operating principles. The main components of a brushed DC motor include the stator, rotor, commutator, brushes, and windings.
Construction: The stator provides a stationary magnetic field, while the rotor, which is the rotating part of the motor, houses the armature windings. The commutator and brushes are essential components that facilitate the flow of current through the windings.
Working Principles: In a brushed DC motor, the current flows through the brushes to the commutator, which then distributes it to the armature windings. This interaction between the magnetic field of the stator and the current in the rotor windings generates torque, causing the rotor to spin.
Advantages and Disadvantages: Brushed DC motors are simple and cost-effective. They are easy to control, making them suitable for various applications. However, they suffer from drawbacks such as brush wear, frequent maintenance, and limited efficiency due to friction and electrical losses.

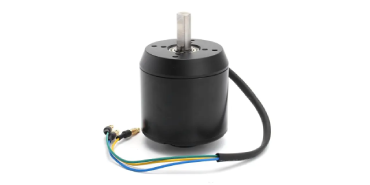

Brushless DC Motors, or BLDC motors, represent a significant advancement in motor technology. They eliminate the need for brushes and commutators, addressing many of the issues associated with brushed DC motors.
Construction: A BLDC motor consists of a stator with windings and a rotor with permanent magnets. Unlike brushed motors, BLDC motors use electronic commutation instead of mechanical commutation. This is achieved through an electronic controller that precisely times the switching of current to the windings.
Working Principles: In BLDC motors, the electronic controller directs current to the appropriate stator windings, creating a rotating magnetic field that interacts with the permanent magnets on the rotor. This interaction produces torque and causes the rotor to spin.
Advantages and Disadvantages: Brushless DC motors offer numerous benefits, including higher efficiency, longer lifespan, lower maintenance, and better performance at higher speeds. However, they are generally more expensive due to the cost of the electronic controller and complex construction.
Comparing brushed and brushless motors highlights the key differences that influence their suitability for various applications.
One of the most significant advantages of brushless DC motors is their longer lifespan. The absence of brushes eliminates the wear and tear associated with mechanical commutation, resulting in reduced maintenance and longer operational life. In contrast, brushed DC motors require regular maintenance to replace worn-out brushes and commutators, which can lead to downtime and additional costs.
Brushless DC motors excel in applications requiring high speed and rapid acceleration. Their electronic commutation allows for precise control over speed and torque, enabling smoother and more efficient performance. Brushed DC motors, while capable of good speed control, are limited by the mechanical commutation process, which can cause inefficiencies and slower response times.
Electrical noise, or electromagnetic interference (EMI), is another critical factor to consider. Brushless DC motors generate less electrical noise compared to their brushed counterparts. The sparking and arcing at the brushes and commutator in brushed motors produce significant EMI, which can interfere with nearby electronic devices. BLDC motors, with their electronic commutation, minimize this issue, making them suitable for sensitive applications.
Acoustic noise, often a concern in consumer and industrial applications, is lower in brushless DC motors. The absence of brushes eliminates the noise generated by mechanical contact, resulting in quieter operation. Brushed DC motors, on the other hand, produce more noise due to brush friction and commutator arcing, which can be undesirable in noise-sensitive environments.
Cost is a crucial consideration when choosing between brushed and brushless DC motors. Brushed DC motors are generally less expensive upfront, making them attractive for cost-sensitive applications. However, the higher initial cost of brushless DC motors can be justified by their longer lifespan, lower maintenance requirements, and improved efficiency, which can lead to lower overall costs in the long run.
In summary, the choice between brushless DC motors and conventional brushed DC motors depends on various factors, including application requirements, budget constraints, and performance needs. Brushless DC motors offer significant advantages in terms of lifespan, efficiency, noise reduction, and performance, making them ideal for high-speed and precision applications. Conversely, brushed DC motors provide a cost-effective solution for applications with less stringent performance requirements and where maintenance can be easily managed.
Understanding the differences between these two types of motors allows for informed decision-making, ensuring the selection of the most suitable motor for a given application. Whether prioritizing cost, performance, or longevity, both brushless and brushed DC motors have their place in the world of electrical engineering, each offering unique benefits that cater to specific needs.
By considering the advantages and disadvantages of each motor type, engineers and designers can optimize their systems for efficiency, reliability, and cost-effectiveness, leveraging the strengths of either brushless or brushed DC motors as required.
