Z20
RITSCHER

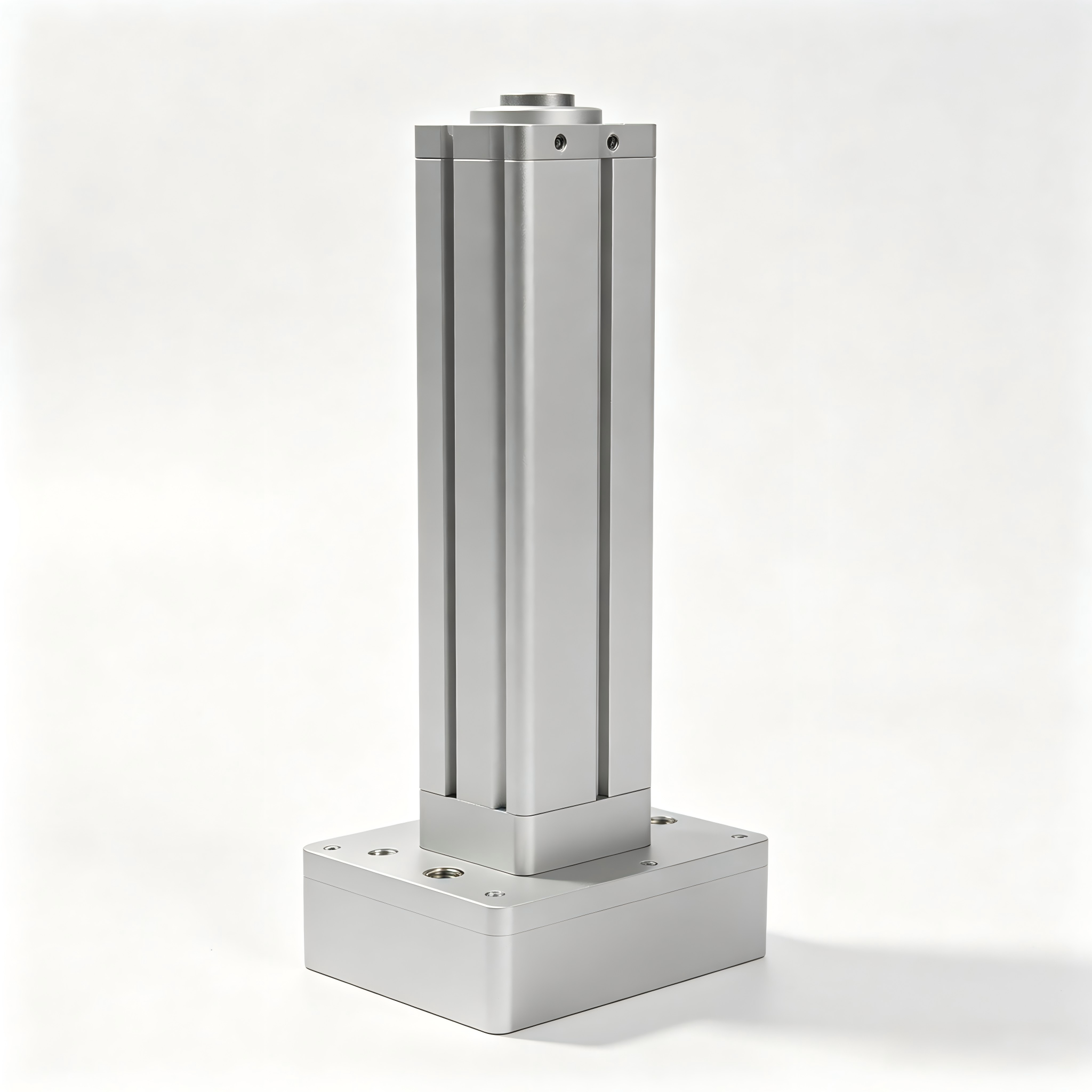

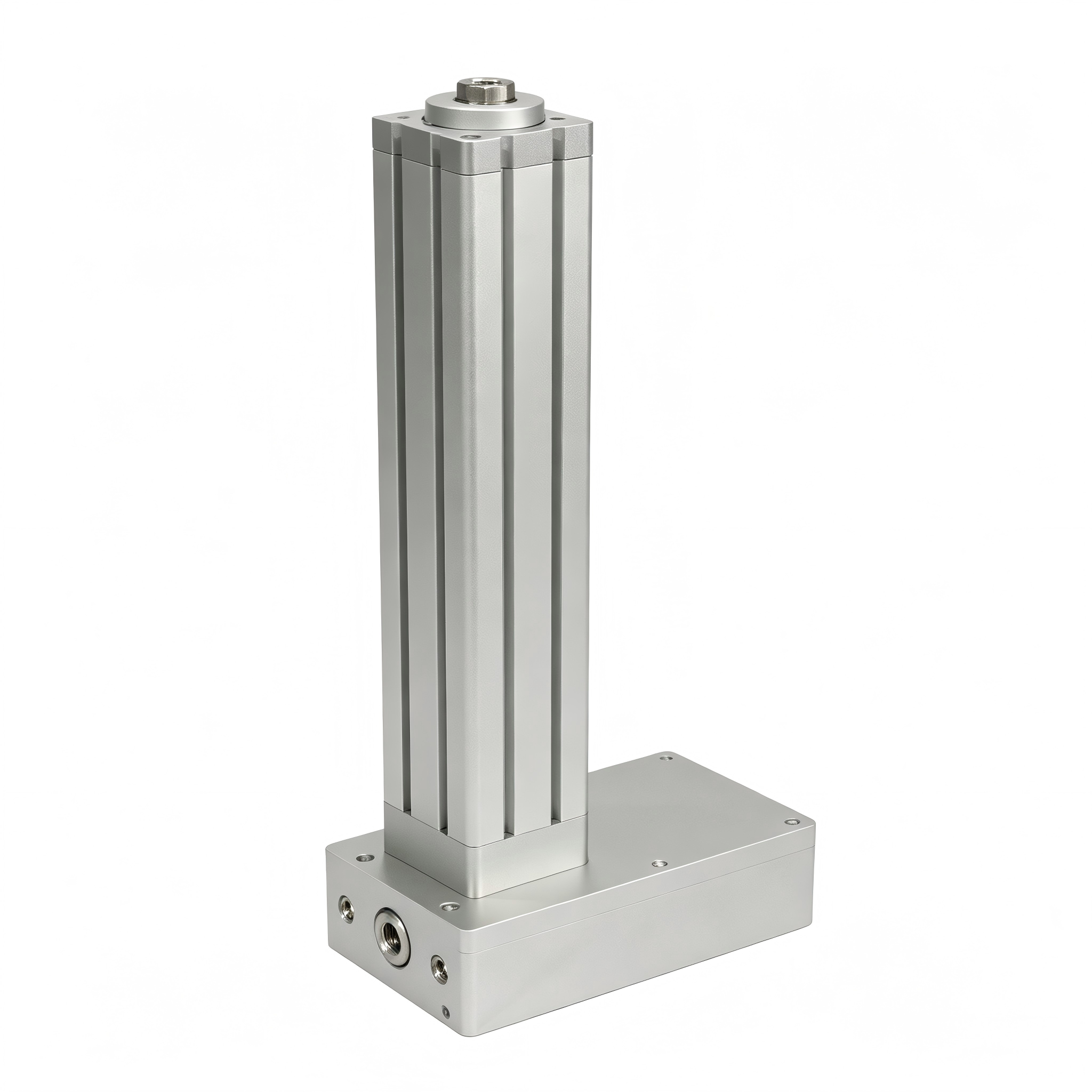

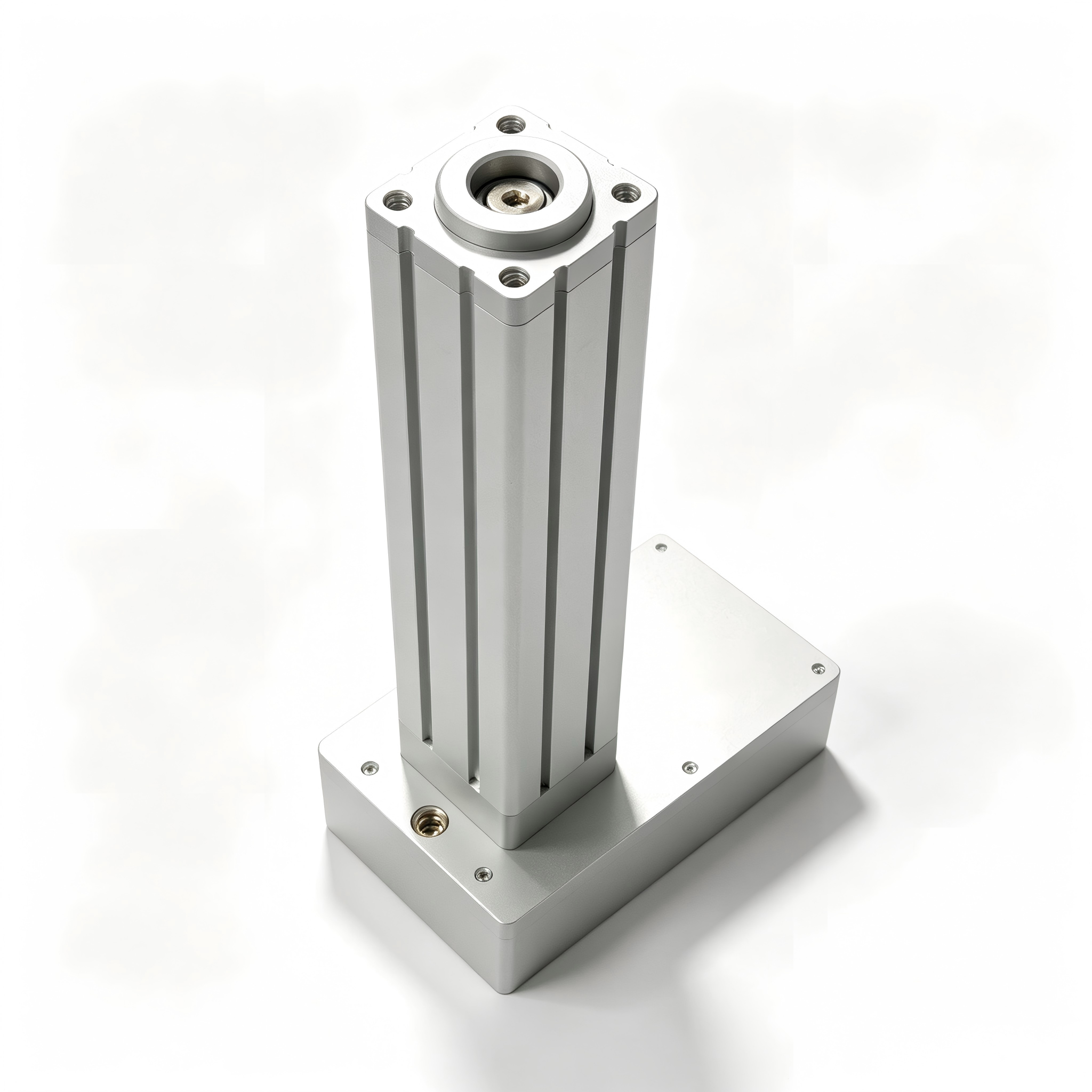

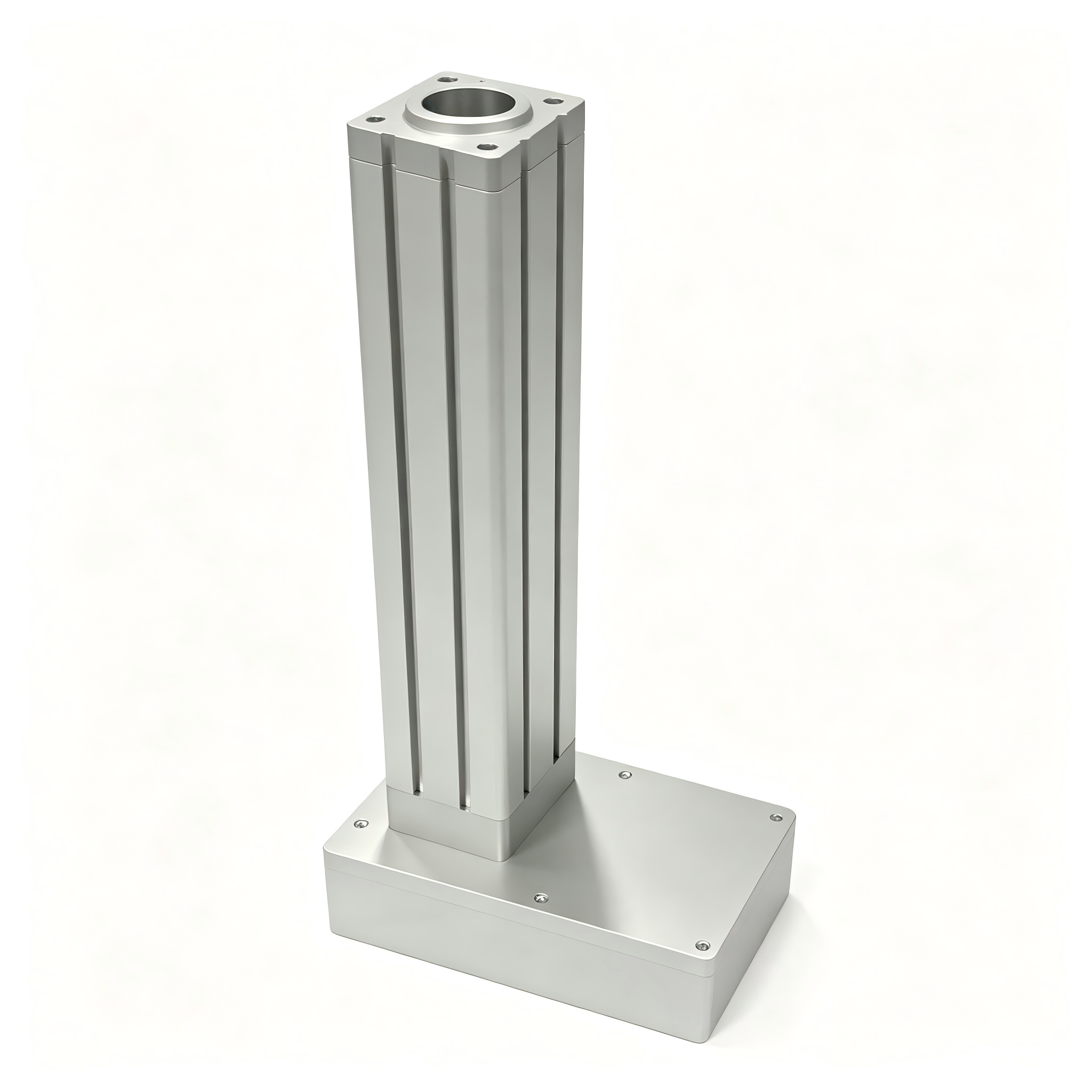

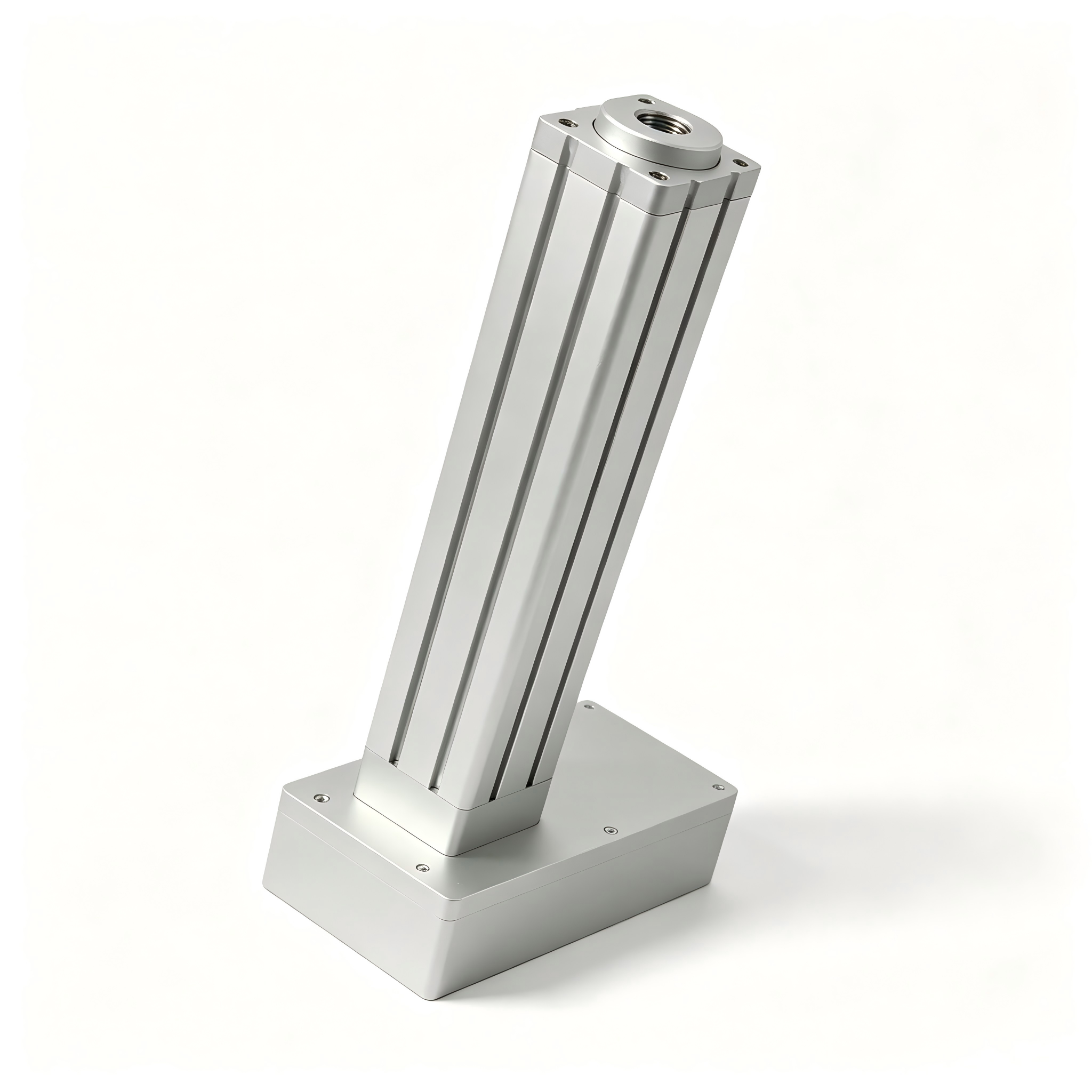

Z20 is a vertical‑mount industrial electric cylinder developed for heavy‑duty vertical push‑pull applications in industrial automation equipment.

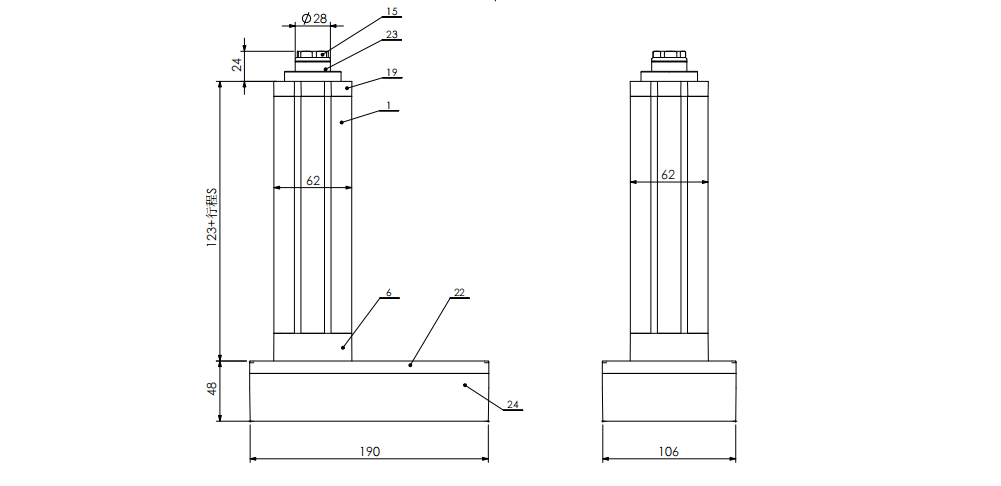

The main body adopts high‑strength aluminum‑profile housing with integrated square mounting base. The surface is treated with silver anodizing for anti‑corrosion, wear resistance and stable appearance. The top connection thread is M24×1.5, assembled without thread‑locking adhesive as specified. Most fasteners require Loctite 263 & 243 thread locker for reliable locking, except for several defined joint positions.
Main structural components include bearing housing, customized front end cover, motor mounting plate and gearbox bottom cover. All die‑cast parts are silver spray‑painted with color code AC21561, matching the color of anodized aluminum profiles. Compact overall layout delivers high structural rigidity while saving installation space.
Custom stroke S is available according to customer requirements. With standardized assembly specifications, this unit ensures stable operation and long service life. It is widely used for automated production lines, special‑purpose machinery and other vertical actuation scenarios.
