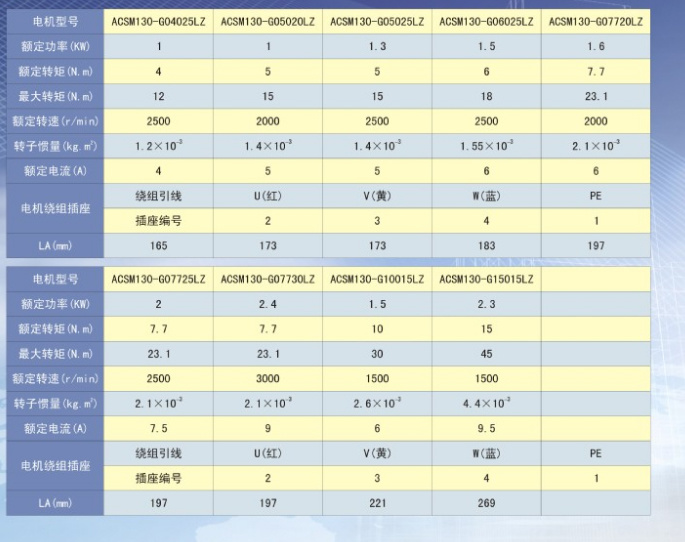

ACSM130-G04025LZ
Ritscher
This series of high-power three-phase servo motors is specially developed for high-precision instruments and equipment. It adopts advanced electromagnetic design solutions and has the following outstanding features:
Flexible customization capability
Stator size supports full range customization (diameter range 80-300mm)
Winding solution optional: distributed winding (precision priority) or centralized winding (power priority)
Pole configuration: 4 poles/6 poles/8 poles optional to meet different speed requirements
Excellent performance
Rated voltage: dual voltage design (110~120V/220~240V)
Frequency compatibility: 50/60Hz adaptive
Power range: 0.75kW-15kW (continuous duty)
Instantaneous overload capacity: 300% rated torque (for 2 seconds)
Precision control characteristics
Encoder resolution : Standard 23-bit absolute encoder
Speed accuracy: ±0.01rpm (within the rated speed range)
Torque fluctuation: <0.5% rated torque
II. Structural design and innovative technology
Innovative stator design
Adopt high magnetic permeability silicon steel sheet (thickness 0.2mm)
Vacuum varnishing process to ensure that the winding insulation level reaches H level (180℃)
Optional forced air cooling or water cooling structure
Rotor core technology
Rare earth permanent magnet (N52 grade NdFeB)
Patented magnetic circuit optimization design to reduce cogging torque
Dynamic balance level G0.4 (higher than industry standard)
Transmission system optimization
Low harmonic sine wave drive technology
Resonance suppression algorithm (suppress mechanical resonance)
Temperature compensation system (built-in 3-point PT100 temperature measurement)
III. Key performance Advantages
Safety and reliability
Protection level IP65 (optional IP67)
UL and CE certified
Built-in over-temperature/over-current/over-voltage triple protection
Ultra-quiet operation
Electromagnetic noise <55dB (1 meter distance)
Using skew slot design to reduce tooth harmonics
Vibration speed <0.8mm/s (full speed range)
Excellent starting characteristics
Starting torque can reach 200% of the rated value
0-3000rpm acceleration time <50ms
Support S-curve acceleration and deceleration control
Extremely long service life
Bearing life: >50,000 hours (L10)
Winding life: >100,000 hours (rated working conditions)
Commutation system life: unlimited (brushless design)
IV. Typical application scenarios
Precision machining equipment
Number Control lathe spindle drive (replacing traditional asynchronous motor)
High-precision grinder feed system
Five-axis linkage machining center
Testing instrument
Three-coordinate measuring machine drive
Optical testing platform
Semiconductor wafer testing equipment
Automated production line
Precision assembly robot
Electronic component placement system
Medical filling production line
Special field application
Astronomical telescope drive system
Laser cutting equipment
Proton therapy device alignment system
V. Selection and service support
Customized service
Provide FEA electromagnetic field simulation analysis
Can match various types of reducers (planetary/harmonic/worm gear)
Support special environment version (explosion-proof/ultra-high vacuum)
Technical support
Free dynamic characteristic curve
Automatic motor parameter recognition function
Complete PID parameter adjustment guidance
