YJ96
Overview
The YJ96 is a reliable and cost-effective AC shaded pole motor designed for continuous-duty applications requiring consistent, low-to-moderate torque output. Utilizing the simple and robust shaded pole principle, this motor offers maintenance-free operation and long service life, making it an ideal choice for driving fans, blowers, pumps, and light mechanical systems in appliances, ventilation equipment, and industrial devices.
Key Features & Advantages
Simple & Highly Reliable Design: The shaded pole construction contains no brushes, capacitors, or centrifugal switches, eliminating common electrical and mechanical failure points. This ensures exceptional operational longevity with minimal maintenance requirements.
Continuous Duty Capability: Rated for 100% duty cycle (S1 operation), making it suitable for applications requiring uninterrupted, long-duration runtime such as exhaust fans, condenser cooling fans, and ventilation systems.
Cost-Effective Solution: Provides one of the most economical motor solutions for single-phase AC applications, delivering reliable performance at a low total cost of ownership.
Quiet & Smooth Operation: Engineered with precision-balanced rotors and optimized magnetic circuits to minimize audible noise and vibration, contributing to a quieter operating environment.
Easy Installation & Control: Operates directly from a standard single-phase AC power source (e.g., 120V/240V, 50/60Hz). Speed can be adjusted within a limited range using simple voltage regulation methods (e.g., triac-based speed controllers).
Robust Construction: Built with a sturdy housing, quality sleeve or ball bearings, and high-temperature insulation materials to withstand demanding environmental conditions, including elevated ambient temperatures.
Inherently Safe Start-Up: Provides gentle, self-starting torque without high inrush current spikes, reducing stress on the motor and the electrical supply circuit.
Typical Specifications
Motor Type: Single-Phase AC Shaded Pole Induction Motor.
Model Designation: YJ96 (Indicative of frame size and performance class).
Input Power: AC 115V / 230V, 50/60 Hz (specific voltage to be confirmed).
Output Power: Typically in the range of 15W to 60W.
Synchronous Speed: 1500 RPM (50Hz) or 1800 RPM (60Hz) for a 4-pole design. Actual operating speed is lower due to slip.
Mounting: Versatile mounting options including resilient base mounts, face-mounted flanges, or through-bolt arrangements.
Shaft: Standard output shaft designed for secure attachment of impellers, fans, or light pulleys.
Thermal Protection: Optional integrated thermal cut-off for overload and over-temperature protection.
Primary Applications
The YJ96 is a versatile workhorse for applications requiring dependable, continuous airflow or light mechanical motion:
Commercial & Industrial Ventilation: Exhaust fans, duct fans, condenser fan motors, equipment cooling fans.
Appliances: Range hood blowers, bathroom exhaust fans, humidifier fans, attic fans.
Medical & Laboratory Equipment: Cooling fans for medical enclosures and lab instruments.
Light-Duty Drives: Small conveyor drives, vending machine mechanisms, signage rotators.
Why Choose the YJ96 Shaded Pole Motor?
For engineers and designers seeking a no-fuss, dependable, and economical motor for continuous operation, the YJ96 stands out. Its legendary simplicity translates into proven field reliability, reducing warranty claims and system downtime. When your application needs a set-and-forget motor to deliver consistent performance day in and day out, the YJ96 shaded pole motor is a trusted and cost-effective choice.

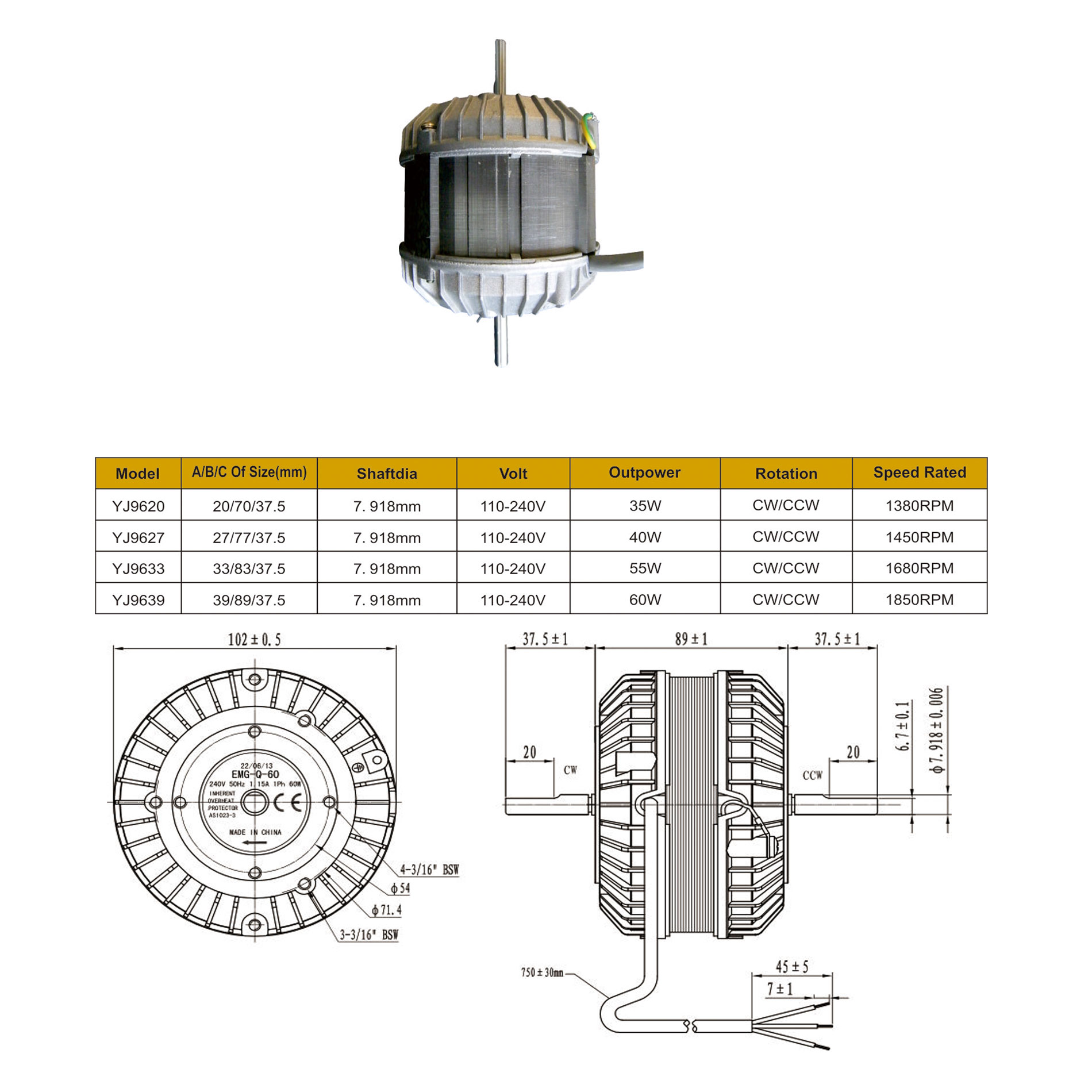

MODEL | A/B/C OF SIZE(mm) | SHAFE DIA | VOLT | OUT POWER | ROTATION | SPEED RATED | ||
YJ9627 | 27/77/37.5 | 7.918mm | 110-240V | 40W | CW/CCW | 1450RPM | ||
YJ9639 | 39/89/37.5 | 7.918mm | 110-240V | 60W | CW/CCW | 1450RPM | ||
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuseRitscher group was set up in 2006.we always focus on micro-motors for household electrical appliance and industry appliance since setting up.currently we have two professional micro-motor factories in China which severally located in Ningbo city and Foshan city.it has an area of 25,000 square meters plants and more than 300 employees, annual output is 3 million pcs and has 5 million pcs annual producing capacity.after several years development,we had built a great reputation in the market and got more and more customers' trust in the world. We started from shaded pole motors at beginning, up to now,our product included of shaded pole motors,synchronous motors,stepping motors ,capacitor motors, BLDC motors, DC motors and compressors. Our product are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.
